Product Details:
Payment & Shipping Terms:
|
| Usage:: | Universal Testing Machine | Testing Chamber:: | 1000L / 2000L / 3000L |
|---|---|---|---|
| Temperature Range:: | -65℃~+80℃ | Humidity Range:: | 20%~95%R.H. |
| Accuracy/uniformity:: | ±0.1℃;±0.1%R.H./±1.5℃;±5.0%R.H | Accuracy/volatility:: | ±1.0℃;±2.0%R.H./±0.5℃;±3.0%R.H. |
| Cooling Time:: | About 4.0℃/minute;about 0.7℃ | Inside Material:: | Stainless Steel |
| Power: | 220v 50hz | Warranty: | 12 Month |
| Name: | Walk In Environment Test Room Climatic Test Chamber Stability Test Chamber For Pharmaceutical | ||
| High Light: | 220v Climatic Test Chamber,3000L Climatic Test Chamber,Pharmaceutical Stability Test Chamber |
||

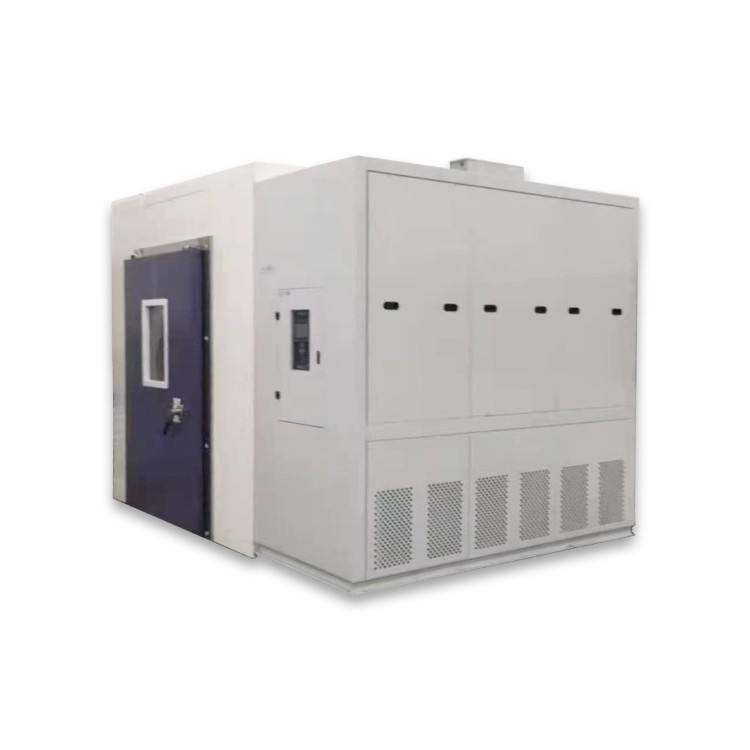

Walk In Environment Test Room Climatic Test Chamber Stability Test Chamber For Pharmaceutical
Equipment Summary:
Constant temperature and humidity room, also known as high and low temperature alternating humidity and heat testing machine is a necessary test equipment for electric and electrical appliances, aviation, automotive, home appliances, coatings, scientific research and other fields, used to test and determine the parameters and performance of electric, electronic and other products and materials for dry, dry, cold, wet and other test temperature environment changes.
Environmental Test Chamber Catalog:
Environmental Test Chamber.pdf
Features:
◆Adopt imported high-precision microcomputer color touch screen temperature and humidity controller, Chinese and English switch.
◆Testing hole (left side of the machine) 50mm, can be connected to test the power line or signal line use
◆The original European and American imports of fully enclosed low-noise high and low temperature with type compressor
◆Double-layer high-temperature resistant sealing strip is used between the door and the box to ensure the airtightness.
◆Imported (SUS#304) stainless steel plate is used for the inner and outer box.
◆The observation window adopts multi-layer hollow tempered glass, and the inner side is glued with sheet type conductive film (can clearly observe the test process)
◆Safety protection device, when any failure occurs, immediately by the screen to display the fault status and cut off the power supply, to ensure the safety of the machine, the product being tested and use.
Corresponding standard :
◆GJB150.3-1986 High temperature test
◆GJB150.4-1986 low-temperature test
◆IEC68-2-1 test A; cold (GB/T2423.1-2001 test A: low-temperature test method)
◆IEC68-2-2 test B: dry heat (GB/T2423.2-2001 test B: high temperature test method)
◆IEC60068-2-78 Test Cab:Constant Humid Heat Test IEC
◆68-2-30 test Db and guidelines: alternating damp heat test (GB/T2423.4-1993 test Cb: alternating damp heat)
Technical parameters:
| Model | ZL-6003 | |
| Size (cm) | According to customer specified size for design | |
| Temperature range | -65℃~+100℃ ( A:0℃ B:-20℃ C:-40℃ D:-65℃ ) |
|
| Humidity range | 20%~95%R.H. | |
| Accuracy/uniformity | ±0.1℃；±0.1%R.H./±1.5℃；±5.0%R.H. | |
| Accuracy/volatility | ±1.0℃；±2.0%R.H./±0.5℃；±3.0%R.H. | |
| Cooling time | About 4.0℃/minute；about 0.7℃~1.0℃/minute | |
| Inside material | stainless steel | |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | |
| Cooling sytem | Water-cooled / two-stage compressor | |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system | |
| accessories | recorder(option),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | |
| controller | Korea “TEMI” or Japan“OYO”brand option | |
| compressor | France's “Tecumseh” Brand | |
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | |
