Product Details:
Payment & Shipping Terms:
|
| Product Name: | ASTM ISO EN Corrosive Resistant Salt Spray Fog Test Chamber Corrosion Tester For Stainless Steel | Inside Box Size: | 60x45x40cm |
|---|---|---|---|
| Outside Box Size: | 107x60x118cm | Brine Temperature: | 35℃±1℃ 50℃±1℃ |
| Testing Room Capacity: | 108L | Brine Tank Capacity: | 15L |
| Air Pressure: | 1.00±0.01kgf/cm2 | Key Words: | Salt Spray |
| Testing Room Temperature: | Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | Pressure Barrel Temperature: | Salt Test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ |
| High Light: | 15L Salt Spray Test Chamber,Stainless Steel Salt Spray Test Chamber,108L Corrosion Tester |
||

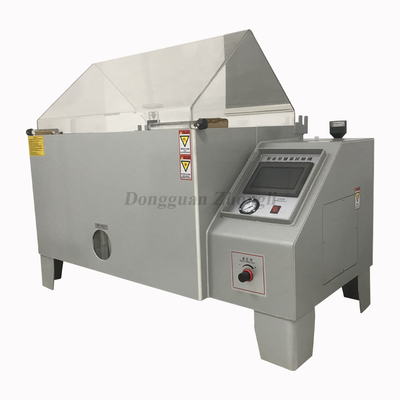

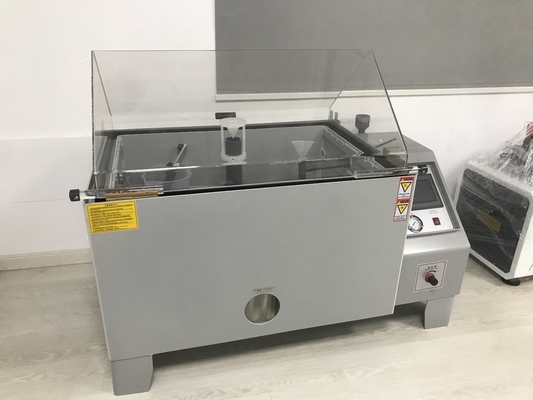

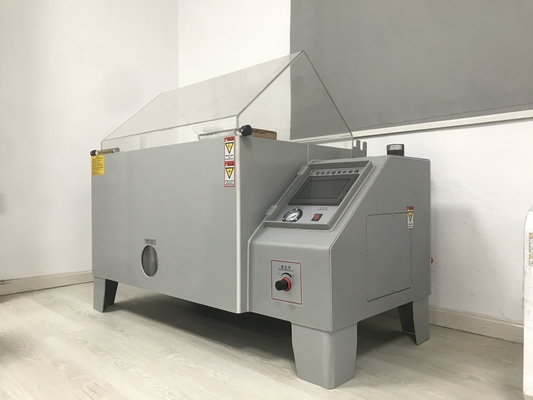

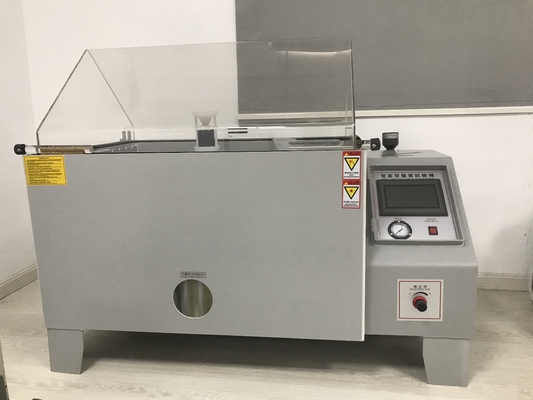

ASTM ISO EN Corrosive Resistant Salt Spray Fog Test Chamber Corrosion Tester for Stainless Steel
Features:
* The whole set is made of imported PVC board, with strong structure, never deformation, and acid and alkali resistance to high temperature and never change
* Automatic/manual water filling system, with automatic/manual water filling function when water level is insufficient, the test is not interrupted, the water level is insufficient warning display.

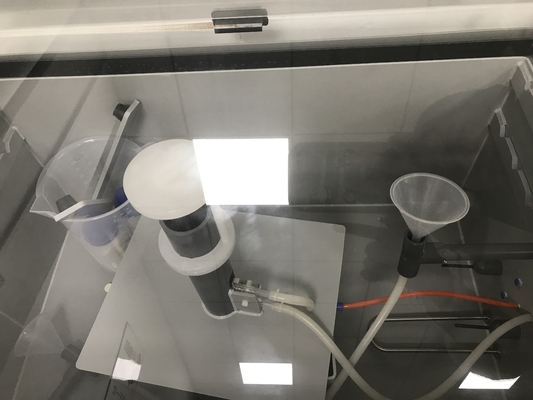

* Precision glass nozzle fog diffusion evenly, and naturally fall on the test piece, to ensure no crystal salt blocking.
* The control instrument is on the same machine board, easy to operate, and clear at a glance.
* With double overtemperature protection, water level insufficient warning, to ensure safe use.
* Imported temperature controller with manual and automatic control mode, using digital display, PID control, error ±1℃, maximum setting time up to 999hrs.
* Direct steam heating method is adopted in the laboratory, which can increase temperature quickly and evenly and shorten standby time.
* The spray tower is attached with a conical dispersion device, which can guide the fog, adjust the fog amount and evenly fall the fog.
* The pressure drum is heated and humidified according to Henry's law, and provides the humidity required by the laboratory.
* The upper cover of the test tank for large scale machine is automatically opened and closed by pneumatic cylinder, which is easy to operate and safe.
* After the test is completed, it has an automatic defogging device, which can clearly observe the samples in the test room.
Overview:
Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
ZL-6001B Economic salt spray testing machine (But...
Catalog about Environmental Test Chamber
Environmental Test Chamber.pdf
Standard :
1. GB/T 10125-1997 salt spray test
2. GB/T 2423.17-1993 salt spray test
3. GB/T 2423.18-2000 salt spray test
4. GB.10587-89 salt spray test
5. IEC68-2-11 salt spray test
6. IEC68-2-52 1996 salt spray test
7. ASTM.B117-97 salt spray test
8. JIS H8502 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Technical parameters:
| Model | ZL-6001B (108L) | ZL-6001B (270L) | ZL-6001B (600L) |
| Inside box size(cm) | 60x45x40 | 90x60x50 | 160x100x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 210x130x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 600L |
| Brine tank capacity | 15L | 25L | 50L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
