Product Details:
Payment & Shipping Terms:
|
| Product Name: | ASTM JIS Motorcycle Helmet Goggles Impact Test Machine With SNELLM2015 AS NZS 2063 | Punch Quality: | 0.3kg±10g |
|---|---|---|---|
| Perforator Cone Angle: | 60 ° ± 1 ° | Perforator Cone Tip Radius: | 0.5mm |
| Drop Weight: | 3kg ± 25g | Impact Height: | 1000mm ± 5mm |
| Headform Weight: | 4kg, 5kg, 6kg And Other Three. | Working Power: | 220V 50Hz |
| Warranty Period: | 2 Years | ||
| High Light: | JIS Helmet Goggles Impact Test Machine,SNELLM2015 Impact Test Machine,Motorcycle Helmet Goggles Impact Tester |
||

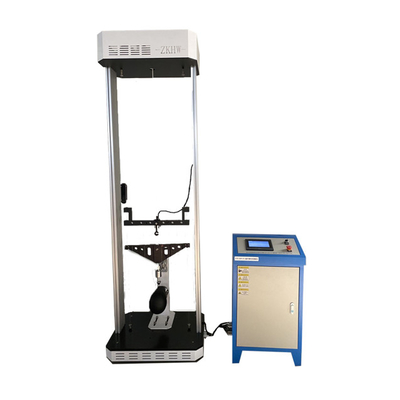

ASTM JIS Motorcycle Helmet Goggles Impact Test Machine With SNELLM2015 AS NZS 2063
Application:
According to the motorcycle helmet ECE R22.05,EN1077,GB811-2010,ECE,EN,ASTM,JIS,SNELLM2015,AS/NZS 2063 production, mainly used to test the motorcycle helmet goggle impact strength performance. Widely used in motorcycle helmets related to production, scientific research, quality supervision and testing units.
Feature:
1, the whole machine door structure, to ensure the stability and reliability of the equipment.
2, Falling hammer adopts electric control, automatic suction and release of falling.
3, The impact height can be adjusted by hand wheel turning the vertical lifting screw.
4, Falling hammer adopts vertical lifting structure to ensure that it is always above the perforator.
5, Configuration of small, medium, large and other three different head mold, convenient for different sizes of helmets for testing.
Catalog about Safety Helmet Testing Machine
Safety Helmet Testing Machine.pdf
Technical parameters:
| Model | ZL-1815 |
| Perforator quality | 0.3kg±10g |
| Perforator cone angle | 60°±1° |
| Perforator cone tip radius | 0.5mm |
| Drop hammer mass | 3kg±25g |
| Impact height | 1000mm±5mm |
| Weight of head die | 4kg,5kg,6kg |
| Working power | 220V 50Hz |
Result determination
According to GB811-2010 motorcycle member helmet, helmet goggle impact should meet
If the goggles are broken, there shall be no fragments less than 60°.
Application Standard:
ECE R22.05,EN1077,GB811-2010,ECE,EN,ASTM,JIS,SNELLM2015,AS/NZS 2063 Can be customized according to the above standards
