Product Details:
Payment & Shipping Terms:
|

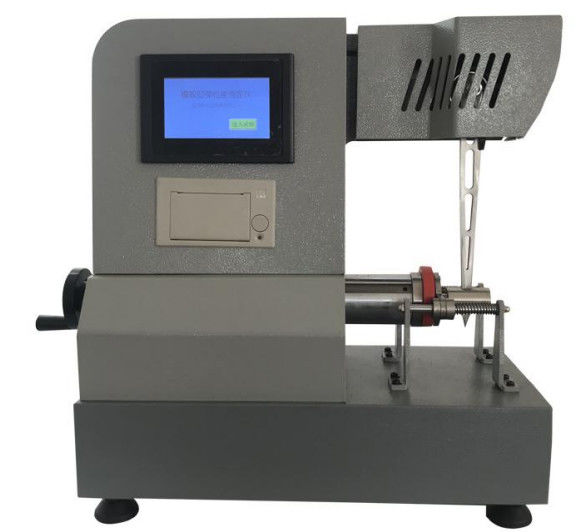

| Name: | Touch Screen Rubber Rebound Tester ISO4662-1986 For Rubber Hardness Values In 30IRHD-85IRHD | Model: | ZL-3007D |
|---|---|---|---|
| Probe Diameter: | φ12.5mm (standard Size, Non-standard Can Be Customized) | Fixture: | Inner Diameter 20mm, Outer Diameter 35mm |
| Impact Mass: | 350g | Impact Speed: | 1.4m/s |
| Resolution: | 0.18° | Maximum Clamping Thickness: | 60mm |
| Impact Angle: | 90°±0.18° | Voltage: | 220V |
| High Light: | Hardness Rubber Rebound Tester,30IRHD Rubber Rebound Tester,85IRHD Rubber Testing Machine |
||
Overview:
The intelligent rubber rebound tester is designed and manufactured according to the national standard GB/T1681-2009 "Determination of the resilience of vulcanized rubber" and the international standard ISO4662-1986 "Rubber-Determination of the resilience of vulcanized rubber".
Scope of application:
suitable for rubber and other products with international hardness values in the range of 30IRHD-85IRHD
Features:
1. Independent research and development of touch operating system, accurate data collection.
2. With a micro-printer, it supports the output of 5 test results in a single test
3. The picture is simple and atmospheric, and the operation is convenient.
4. Support standard samples and output non-standard samples separately.
Technical parameters:
1. Probe diameter: φ12.5mm (standard size, non-standard can be customized)
2. Fixture: inner diameter 20mm, outer diameter 35mm
3. Impact mass: 350g
4. Impact speed: 1.4m/s
5. Resolution: 0.18°
6. Maximum clamping thickness: 60mm
7. Impact angle: 90°±0.18°
8. Voltage: 220V
Optional punch and fixture combinations
| Basic Features | Size I | Size II | Size III | Size IV | size v |
| Sample thickness d/mm | 2±0.1 | 4±0.2 | 6.3±0.3 | 12.5±0.5 | 25±1 |
| Punch diameter D/mm | 2±0.05 | 4±0.1 | 6.3±0.1 | 12.5±0.1 | 25±0.2 |
| Minimum diameter of sample/mm | 9 | 15 | 20 | 2 | 50 |
| Maximum diameter of sample/mm | 25 | 45 | 53 | 53 | 70 |
| Clamping ring inner diameter/mm | 5 | 8 | 12 | 20 | 36 |
| Clamping ring outer diameter/mm | 10 | 16 | 22 | 35 | 55 |
*The green mark is the default configuration standard punch
