| Name: | JIS-K6255 Rebound Elasticity Testing Machine For Rubber Industry | Model: | ZL-3007C |
|---|---|---|---|
| Specimen: | Ф28.6829，（D）12.7mm | Peeler: | Ф12.7mm（L）356，（R）6.35mm, Weight 350 |
| Length Of Gauge Level: | （L）625，（R）2000 Mm | Height Of Gauge Vertical: | 100mm（divided Into 100 Parts） |
| Height Of Fall: | 100mm（vertical） | Hanging Wire Length: | 2000 Mm（fore-and-aft Gap 250 Mm，left-and-right Gap 900 Mm） |
| Volume: | 120*92*275cm | Weight: | 70kg |
| High Light: | 100mm Elasticity Testing Machine,Rebound Elasticity Testing Machine,Rebound Rubber Testing Machine |
||
Equipment Description:

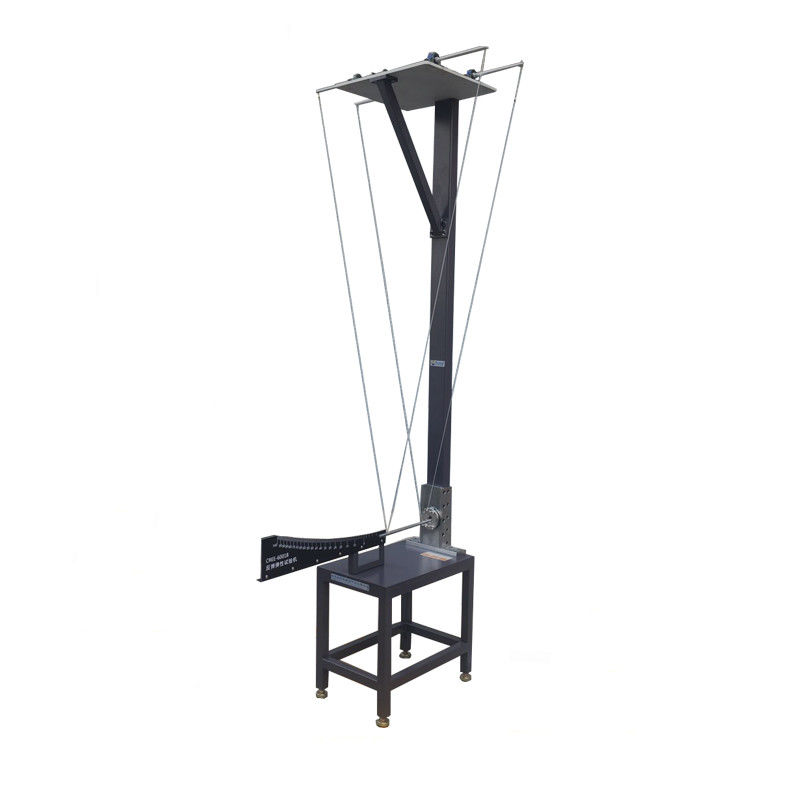

The tester used to test elastic rebound of sulfur rubber. Test method is moving an iron bar to make the pointer locate in the scale 100, and then free fall of an iron bar, read the four-hit and the rebound height, that is the test material's elastic rebound rate.
corresponding standard :
JIS-K6255
Applicable Industry:
Rubber Industry
Technical parameter:
| Model | ZL-3007C |
| specimen | Ф28.6829,(D)12.7mm |
| Peeler | Ф12.7mm(L)356,(R)6.35mm, weight 350 |
| Length of gauge level | (L)625,(R)2000 mm |
| height of Gauge vertical | 100 mm(divided into 100 parts) |
| Height of fall | 100 mm(vertical) |
| Hanging wire length | 2000 mm(fore-and-aft gap 250 mm,left-and-right gap 900 mm) |
| Volume | 120*92*275cm |
| Weight | 70kg |
What's the warranty statement?
Zhongli warrants all the products manufactured by Zhongli to free from defects in material and workmanship
under normal use of a period of 12 months or 36months after the date of the original purchase price if repair
or replacement is not possible of practical, Zhongli warranty covers ONLY the product itself.
Zhongli will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored
only when the product has been installed and used properly as deemed by Zhongli, Zhongli will not repair products
damaged by improper use or faulty installation.
What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage within 7days of
receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,
package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier,
and any claim beyond this 7days period will not be deemed valid by ZhongLi .
How about in case of breakage?
Zhongli will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow:
Returns must be first acknowledged by ZhongLi PRIOR to return, Please contact the related salesman in charge.
All packages sent to Zhongli MUST have the initial sales invoice number issued and printed clearly on the outsite of
package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued.
All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not
be accepted for return.
How about the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door service
Life-long maintenance service for the product
Thanks for your support to Zhongli !
