Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method

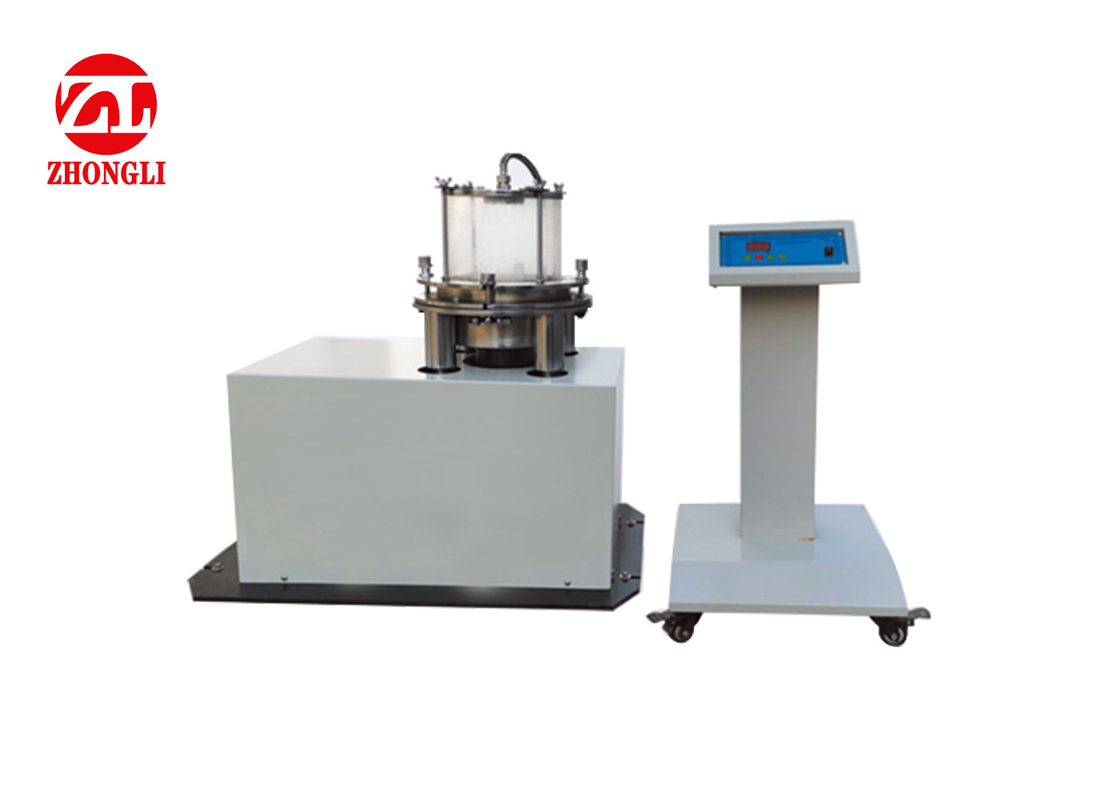

Large Image : Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2404A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

The Inner Diameter Of The Holder:	Φ176mm	Vibration Frequency:	50Hz
Vibration Amplitude:	1.5mm (vibration Height 3mm)	Time Setting:	0～999S
Motor Parameters:	2800r/min 550W	Power Supply:	12.5mm
Dimensions:	680×420×750mm	Weight:	110Kg
High Light:	Wet Sieve Diameter Tester , Geotextile Effective Pore Diameter Tester , Wet Sieve Laboratory Testing Instrument

GB/T17634 Geotextile Effective Pore Diameter Testing Machine With Wet Sieve Method

Scope of application:

This instrument is suitable for the determination of the effective pore size of all types of geotextile products, and its performance meets the requirements of the GB/T17634 "Determination of the Effective Pore Size of Geotextiles and Related Products - Wet Sieve Method" standard for the instrument.

The test principle:

Using the untensioned single-layer geotextile and its related product samples as the screen, under the specified vibration frequency and amplitude, spray water on the sample and the graded granular material, so that the granular graded material passes through the sample. The effective pore size of the sample is expressed by the particle material passed through and the specific particle size.

Technical parameters:

1. The inner diameter of the holder Φ176mm

2. Vibration frequency 50Hz

3. Vibration amplitude 1.5mm (vibration height 3mm)

4. Time setting 0～999S

5. Motor parameters 2800r/min 550W

6. Power supply 380V

7. Dimensions 680×420×750mm

8. Weight 110Kg

Machine Certificate:

Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method 0

Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method 3

Business license Fame Certificates Wall

Factory environment area:

Company outdoor view Reception

Sales Team and Technicial Team:

Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method 7

Exhibition:

Geotextile Effective Pore Diameter Tester GB / T17634 With Wet Sieve Method 11
