| Product Name: | ISO 20653 Programmable Rain Test Chamber ( IPX5 , IPX6 ) | Inner Box Material: | 304 Mirror Stainless Steel |
|---|---|---|---|
| Outer Box Material: | 304 Brushed Stainless Steel | Viewing Window Size: | 800x800 Mm |
| Turntable Load: | 25 KG | Control Method: | Color Touch Screen |
| Test Time: | 1-999 Minutes | Water Flow: | 12.5l/min |
| Machine Power: | 220V | Key Words: | Flush Rain Test |
| High Light: | Programmable Rain Test Chamber,IPX6 Rain Test Chamber,IPX5 Environmental Test Chamber |
||

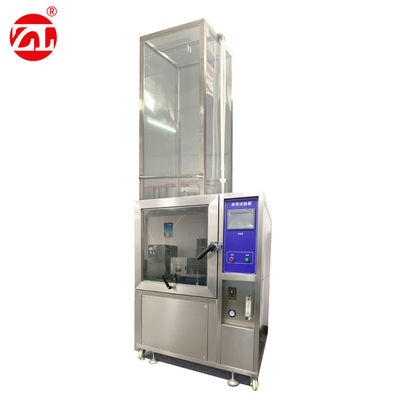

ISO 20653 Programmable Strong Flush Rain Test Chamber ( IPX5 , IPX6 )
Overview:
This equipment is suitable for rain, dust and sand-soaked tests of industrial electronic products such as various auto parts and electronics The system's full sealing stability test.
The rain test box is a test box that artificially simulates rain. It is well known that all components and equipment in an atmospheric environment, whether in working or storage conditions, will be affected by various water (containing impurities) to varying degrees. Rain is seen recently, and the rain test is to prevent the work efficiency of these devices from changing during or after rain penetration and rain.
The performance index of this test box meets GB/T10485 "Car and Trailer External Device, Car and Trailer External Lighting and Signal Device Basic Environmental Test, Industrial Electronic Product Basic Environmental Test" and related test standards such as JIS and MIL. ISO 20653-2006, GB-4208-93, GB2423.37-89La, GB4208-93, DIN40050.5K and other corresponding national standards for rain test.
Parameters:
| Model | ZL-6016-1000 |
| Inner box size | W1000x D1000xH2500 mm |
| Outer box size | W1500x D1200xH3300 mm |
| Inner box material | 304 mirror stainless steel |
| Outer box material | 304 brushed stainless steel |
| Viewing window size | 800x800 mm |
| Test bench speed | 1-5rpm adjustable |
| Turntable load | 25 KG |
| Control method | Color touch screen |
| IPX5 flushing test device | |
| Orifice diameter | 6.3 mm |
| Water flow | 12.5l/min |
| Spray distance | 2.5 meters |
| Water spray time Duration | 0～9999min adjustable (such as 0.3min, 1min, 3min) |
| IPX5 nozzle | 6.3mm/pc |
| Water pipe diameter | 60mm |
| Test time | 1-999 minutes |
| IPX6 flushing test device | |
| Orifice diameter | 12.5 mm |
| Water flow | 12.5l/min |
| Spray distance | 2.5meters |
| Water spray time Duration | 0～9999min adjustable (such as 0.3min, 1min, 3min) |
| Test time | 1-999 minutes |
| IPX6 nozzle | 12.5mm/pc |
| Water pipe diameter | 60mm |
| Machine power | 220V |
