Product Details:
Payment & Shipping Terms:
|
| Product Name: | Touch Screen Heat Sealing Machine , Hot Air Sewing Machine For Protection Suit | Control Mode: | PLC + Touch Screen |
|---|---|---|---|
| Compressed Air: | Stable 5KG / C㎡ | Welding Speed: | 1-23m / Min (adjustable) |
| Maximum Welding Temperature: | 800 ℃ | Packing Size: | 1270 × 670 × 1620mm |
| Weight: | Net Weight 125KG. Gross Weight 170KG | Temperature Control Mode: | SSR Solid State |
| High Light: | abrasion resistance testing machine,yarn twist tester |
||

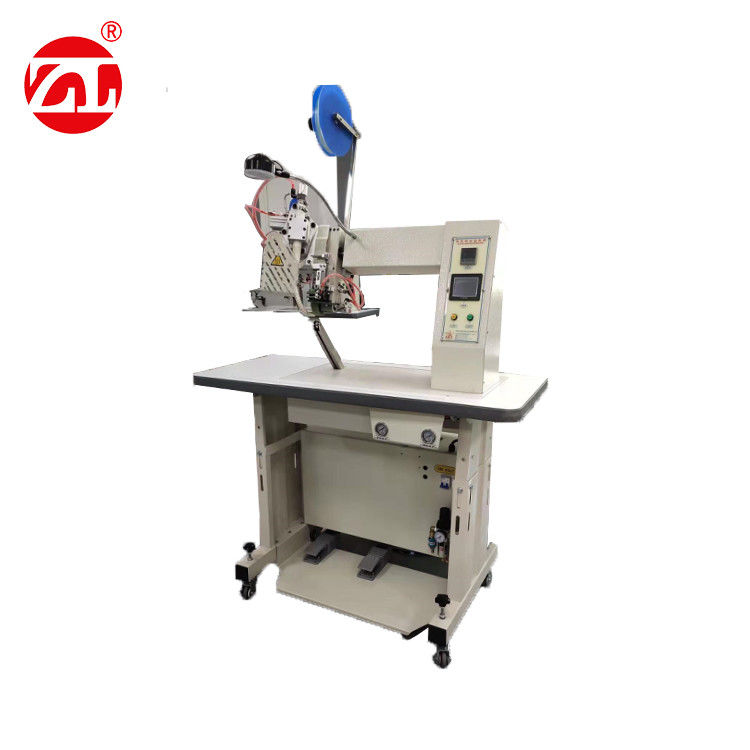

Touch Screen Heat Sealing Machine , Hot Air Sewing Machine For Protection Suit
Overview:
The main function of the introduction is to use a hot-air gun to melt the adhesive surface of the waterproof rubber strip, and at the same time, with the rotation and pressure of the upper and lower rollers, the rubber strip is closely attached to the needle eye of the waterproof material, so that the waterproof film is fused into one body to achieve the waterproof effect.
Application:
Suitable for all kinds of waterproof shoes and waterproof appliances.
Waterproof equipment includes: protective clothing, waterproof clothing, NEOPENE wetsuit, waterproof luggage, wind and snow windbreaker, fishing pants, waterproof camp, waterproof hat, gloves and so on.
Waterproof shoes include: sports shoes, hiking shoes, snow boots, golf shoes, five-finger beach shoes, labor insurance work shoes, etc.
Parameters:
| Control mode | PLC + touch screen |
| Compressed air | Stable 5KG / C㎡ |
| Welding speed | 1-23m / min (adjustable) |
| Maximum welding temperature | 800 ℃ |
| Air gun specifications | Flat mouth row holes 20--25CM optional |
| Power requirements | AC220V 50HZ / 60HZ |
| Rated power | 1800W |
| Up / down wheel width | 25MM (others can be scheduled) |
| Temperature control mode | SSR solid state |
| Packing size | 1270 × 670 × 1620mm |
| Weight | Net weight 125KG. Gross weight 170KG |
