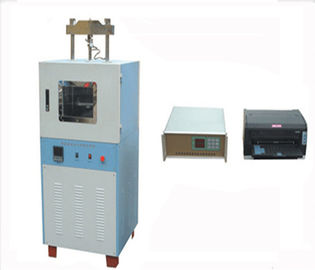

LCD Step Motor Drive Cold Flexibility Tester For Bitumen JTG E20-2011

Large Image : LCD Step Motor Drive Cold Flexibility Tester For Bitumen JTG E20-2011

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2414

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	JTG E20-2011 LCD Step Motor Drive Cold Flexibility Tester For Bitumen	Power:	220v 50HZ
Load Cell Range:	0-5KN, Accuracy:1%	Stroke Sensor Range:	0-30mm , Resolution: 0.01mm
Tester Lift Stroke:	0- 100mm	Tester Size:	800x600x1700mm
Display Screen:	Digital LCD Display	Temperature Range:	-40c To +60c, Accuracy: 0.5c
Highlight:	rubber tensile testing machine , rubber testing equipments

LCD Step Motor Drive Cold Flexibility Tester For Bitumen JTG E20-2011

Product Overview

The JTG E20-2011 LCD Step Motor Drive Cold Flexibility Tester for Bitumen is a precision testing instrument developed in accordance with the "Highway Asphalt and Asphalt Testing Procedures JTG E20-2011" standard. This advanced equipment utilizes stepper motor reduction drive technology combined with specialized fixtures and a comprehensive data acquisition and control system to perform low-temperature flexural tensile tests on asphalt mixture beams.

Key Features

Stepper motor drive system for precise control
Automated testing process with complete specimen clamping
Integrated data acquisition and processing system
Dual functionality as low-temperature chamber and flexural tensile testing apparatus
Digital LCD display for clear data visualization
Essential equipment for transportation quality inspection agencies

Technical Specifications

Parameter	Specification
Drive System	Step motor drive
Up/Down Speed	50mm/min
Power Supply	220V 50HZ
Load Cell Range	0-5KN, Accuracy: 1%
Stroke Sensor Range	0-30mm, Resolution: 0.01mm
Tester Lift Stroke	0-100mm
Tester Dimensions	800×600×1700mm
Display	Digital LCD Display
Temperature Range	-40°C to +60°C, Accuracy: 0.5°C

This multifunctional asphalt mixture mechanical test equipment represents domestic innovation in testing technology and serves as an essential tool for quality inspection agencies in the transportation sector.
