4 15" Touch Screen X - Ray Foreign Object Detector For Food Or Internal Defects

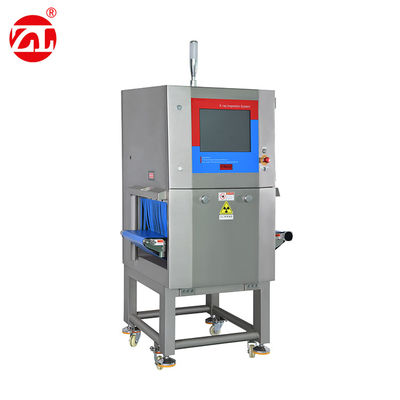

Large Image : 4 15" Touch Screen X - Ray Foreign Object Detector For Food Or Internal Defects

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4024

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	4 15" Touch Screen X-ray Foreign Object Detector for Food or Internal Defects is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	4 15" Touch Screen X-ray Foreign Object Detector For Food Or Internal Defects	Minimum Detection Ability:	Lead 0.2 Mm, Iron Ø 0.28 X 1 Mm Stainless Steel Ø 0.28 X 1 Mm
X-ray Output:	Max. 80KV	Maximum Load:	10kg
Processing System:	Windows 2000 Professional	Waterproof Grade:	IP66, Easy To Clean
Foreign Matter Detected:	Metal (Fe, Sus, Pb, Cu, Etc.), Glass, Stones, Plastic, Etc	Key Words:	X - Ray
Highlight:	food metal detector , metal detector checkweigher

4 15" Touch Screen X-Ray Foreign Object Detector For Food Or Internal Defects

Product Overview

The X-ray foreign object detector is an advanced device that automatically detects foreign objects (metal, stone, glass, plastic, bones, etc.) in foods that cannot be seen by the naked eye, as well as internal defects (voids, cracks) in products. The system can also detect missing products and defective items simultaneously.

Applications

Food processing
Meat processing
Agricultural and livestock processing
Fruit processing

Detectable Foreign Objects

Metal (Fe, Sus, Pb, Cu, etc.)
Glass
Stones
Plastic

Detection Capabilities

Lead: 0.2mm minimum standard
Iron and flint: Minimum diameter 0.28mm
Non-metallic stones and glass: Minimum 1.2mm

Customer Satisfaction Features

Automatically set product detection parameters
Equipped with wash design
Production management by year/month/day
MTBF, MTTR analysis and equipment management
Image storage (1 month automatic storage) / printing / analysis
Report printing capability (requires printer connection)
System alarm function
Monthly alarm information printing function

Technical Specifications

Item	ZL-500	ZL-2300	ZL-3500D
Minimum detection ability	Lead 0.2 mm, Iron Ø 0.28 x 1 mm, Stainless steel Ø 0.28 x 1 mm
X-ray output	Max. 80KV	Max. 80KV	Max. 80KV
Detection speed	Max. 60m/min Min 10m/min	Max. 75, 43m/min Min 10m/min	Max. 75, 43m/min Min 10m/min
Width	230mm	270mm	410mm
Maximum pass height	120mm	175mm	225mm
Maximum load	10kg (5kg with surface, speed exceeds 40m/min)
Height with belt surface	750 ± 50mm
Computer display	4 15" Touch screen
Processing system	Windows 2000 Professional
Power/product weight	220V port Max. 320kg	220V port Max. 480kg	220V port Max. 580kg
External dimensions	800x860x1580mm (HxWxD)	900x685x1600mm (HxWxD)	1985x915x1790mm (HxWxD)
Consumption power	0.8kw	0.9kw	1.6kw

Additional Features

Bad image management: Stored in USB drive, can be exported
Modification function model registration: Product image, image brightness modification function (total 16 types)/maximum 10,000 products can be registered (HACCP corresponding)
Product management: Can be inquired by year/month/day and custom date
Equipment management: MTBF, MTTR, Danger alarm prompt
Parameter setting: Automatic setting, operation instructions
Image management: Save/print/automatic image analysis (HACCP correspondence)
Waterproof grade: IP66, easy to clean
X-ray Dispatch: Max. Dispatch < 1uSv/Hour
Start environment: 0°C ~ 35°C
