| Product Name: | Single Wing Packaging Impact Falling Testing Machine | Dropping Height: | 300mm-1500mm |
|---|---|---|---|
| Dropping Deviation: | ±10mm | Deviation Of Dropping Horizon: | Less Than 1° |
| Weight: | 550kg | Power: | AC380V,50Hz |
| High Light: | paper test equipment,carton bursting tester |
||

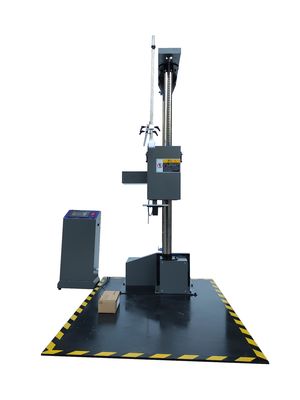

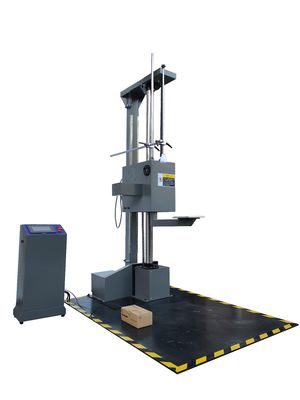

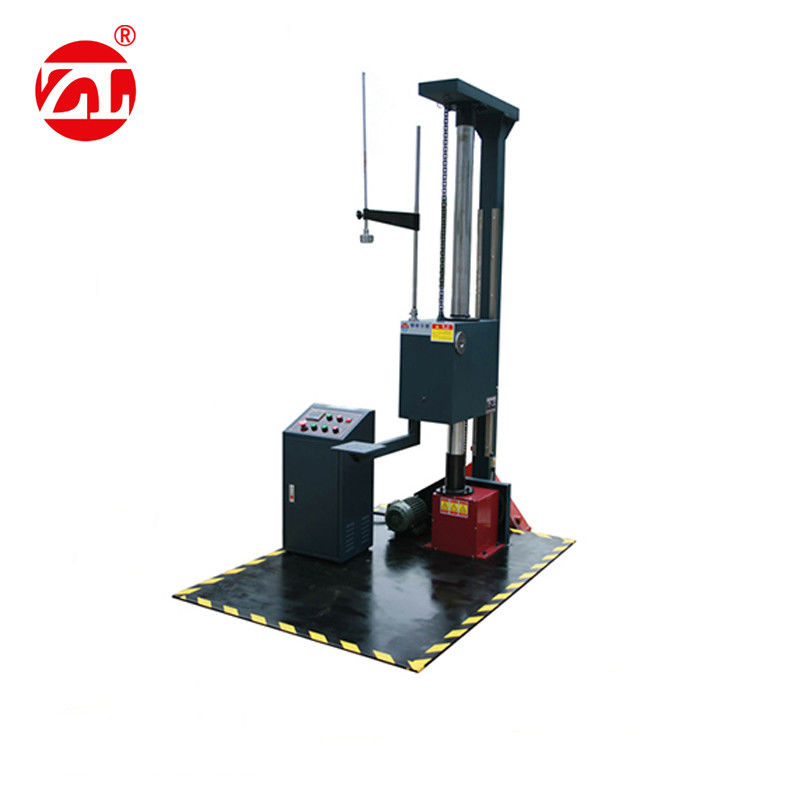

Digital Display Packaging Impact Falling Testing Machine , Single Wing
1. Function
Electronic Drop Tester Exporter is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
2. The comparison table of the package weight and dropping height:
| Weight | Height | ||||
| No less than | Less than | Free-drop | |||
| Lbs | Kg | Lbs | Kg | Inch | mm |
| 0 | 0 | 21 | 10 | 30 | 760 |
| 21 | 10 | 41 | 19 | 24 | 610 |
| 41 | 19 | 61 | 28 | 18 | 460 |
| 61 | 28 | 100 | 45 | 12 | 310 |
| 100 | 45 | 150 | 68 | 8 | 200 |
3. Operation of control chamber
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
4. The Technical parameters:
| Dropping height | 300mm-1500mm |
| Display method | digital display |
| Maximum weight of the package | 60kg |
| Maximum size of the package | (L×W×H)1000×700×1000mm |
| Size of the dropping panel | (L×W)1700×1400mm |
| Size of the swing | 200×150×8mm |
| Dropping deviation | ±10mm |
| Deviation of dropping horizon | less than 1° |
| Outside size | (L×W×H)1700×1200×2500mm |
| Chamber size | (L×W×H)350×350×1100mm |
| Weight | 550kg |
| Power | AC380V,50Hz |
5. Configuration
Outside material: advanced paint coat
Display: LCD display
Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
