| Product Name: | Eight Individually Controlled Precision Oven | Temperature Range: | RT + 10 ℃ ~ 200 ℃ |
|---|---|---|---|
| Control Accuracy: | ± 0.5 | Temperature Uniformity: | ± 2 ℃ |
| Power: | 220V / 380V | Partition: | Each Enclosure 2 * 4 |
| High Light: | temperature humidity test chamber,low temperature refrigerator |
||

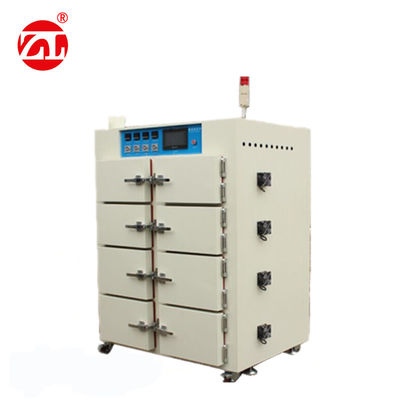

Eight Individually Controlled Precision Oven ,Touch Screen And PLC Progra
The machine uses a touch screen + PLC program control design, the angle, thin steel plate, in addition to strengthen the cabinet, re-paint the outer surface, between the shell and liner filled with aluminum silicate fiber, forming a reliable insulation, industrial oven applications very wide range, can be dried in various industrial materials and is a versatile drying equipment.
Standards and test methods to meet
GB11158-89 technical conditions of high temperature chamber temperature test method specifications GB2423.2-89
GB / T 11158-2008 "high-temperature test chambers", JB / T 5520-91 "oven technical conditions"
Safety of electric equipment according to GB5959.1-2005, GB5959.4-2005 execution
GB10067.1-2005 "electric equipment basic technical conditions for the general part"
GB10067.4-2005 "electric equipment basic technical conditions for indirect resistance furnace"
The machine is suitable for automotive imaging camera, LED optoelectronic industry curing oven is widely used dot matrix, digital control, LED light-emitting diode, SMD, power, placement and other curing
Individually controlled oven main technical parameters:
| Internal dimensions | W350 × H450 × D550 * 4 (size customized according to customer requirements) |
| Configuration | Four individually controlled |
| Temperature range | RT + 10 ℃ ~ 200 ℃ |
| Control accuracy | ± 0.5 |
| Temperature uniformity | ± 2 ℃ |
| Warm-up time | RT + 10 ℃ ~ 100 ℃ about 10min |
| Power | 220V / 380V |
| Heating power | 1.5KW * 4 each enclosure |
| Partition | Each enclosure 2 * 4 |
Features:
1. The unique four-door single control design, each body independent control box, easy to manufacture multiple products on the same machine or experiment, reduce costs and facilitate energy conservation.
2. The external use SCEE steel plate electrostatic powder paint handling, the use of SUS stainless steel.
3. Imported high-temperature long-axis motor, turbo fan.
4. The silicone Packing high temperature resistant fibers
5. The ultra-high temperature protection, over load automatic power-off system
6. circulatory system: forced air system
7. Heating system: PID + SSR
8. Thermostat: PID microcomputer automatic control, automatic climate control, rapid temperature compensation function (segmented program temperature control is optional)
9. Time: Wei Lun touch screen + PLC control, temperature to time, to the alarm sound and light warning, to ensure the accuracy of working hours
