| Product Name: | Energy Dispersive X-ray Fluorescence (XRF) | Dimension: | 650mm*450mm*350mm |
|---|---|---|---|
| Sample Cabin Dimension: | 280mm*280mm*200mm | Weight: | About 32 Kg |
| Working Ambient Temperature: | 15-30℃ | Sample: | Solid、Liquid、Powder |
| Testable Elements: | S-U | CCD Pixel: | 5 Mega-pixel |
| High Light: | rubber tensile testing machine,rubber hardness tester |
||

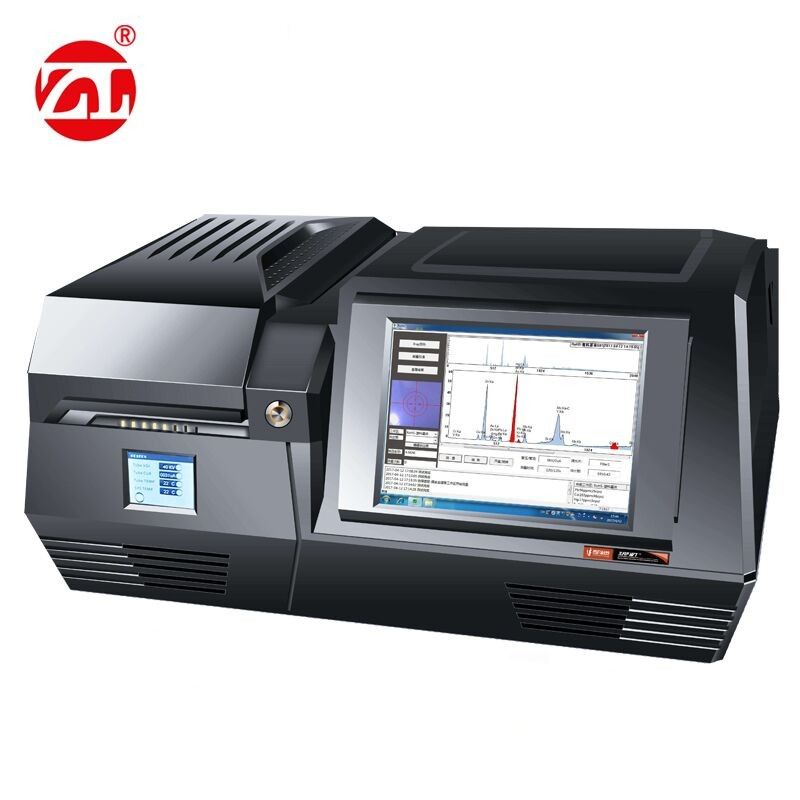

Energy Dispersive X-ray Fluorescence (XRF) For Material Composition , Chemical , Medicine
Industry Application
XRF is short for X-Ray fluorescence Spectrometer, is a physical element analysis method.
For the past few years XRF as a rapid test method has played a great part in environment protection, material composition, nonferrous metallurgy, chemical, medicine and other industries. XRF has rapid, non-destructive, multiple elements simultaneous analysis, low analysis cost etc great superiority.
In environment protection and foodstuff areas, XRF can screen out heavy metals whether near harmful levels through direct testing methods.
ROHS is a compulsory standard established by European Union legislation which aims to eliminate Pb,Hg,Cd,Cr-VI,PBB,and PBDE in electrical electronic products. As ra pid testing equipments, XRF is playing an important part in the application.
Moreover, XRF has wide application in site analysis and process control analysis, such as scrap metal recycling, soil site inspection, online material inspection.

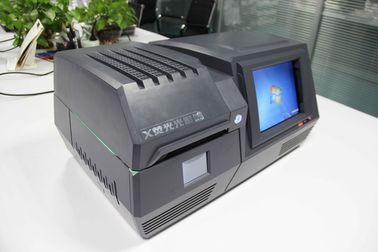

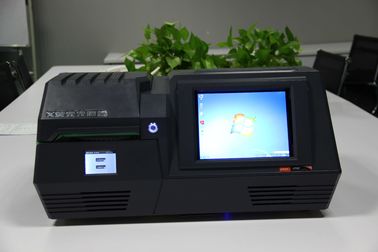

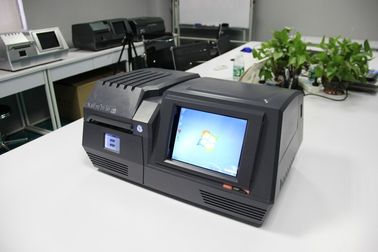

Product Overview
Features
1. Industry Computer and Instrument Integrated. Stable Running and Delicate in Design.
2. 5 Mega-pixel Camera, Clear Observation, Accurate Positioning.
3.Unique Elements Secondary Extraction Algorithm, Improve Micro element Detection Algorithm.
4. Self-defined Material Testing Finish Audio Alarm Function,Convenient for Operators Multitasking Job.
5. Running light control module working indicator, operator intuitionisticly know equipment status.
6. Software Integrated with Multiple ROHS Limit Standard Judgment Function in One Mode.
7. Each Core Accessory Separately Design, Avoid Interactive Electromagnetic Interference. Improve Equipment Detection Limit and reduce Equipment Failure Rate.
8.Multi-language Software Version.
Function
1. Integrate data statistics function, Convenient for QC Dept statistic suppliers, Material
Name, Components and Different Time Quantum(Such as Cycle, Monthly, Quarter) Testing Statues.
2. Open Working Curve Calibration Function, Customized Hazardous Substance Inspection Methods and Control Schemes.
3. Software Power On Self Test and failures judgment function, Keep Equipment Running under optimal operating conditions and debugging in time once abnormal.
4. Analyze data One Key Backup/Restore Function, Avoid Loss Resulting from misoperation or Other Reasons, Ensure Data and System Files Safety.
5. Self-Defined Testing Report Output Format (Excel,PDF and List Chart) According to
Customers Requirements. Conform to Factory Multiple Statistical Requirements.
6.Support Multi-User Registration, Convenient for QC Dept Rapidly Trace Materials Inspection Status
7.Core Hardware Real Time Temperature Monitoring Function. By Heat Source Analysis Design and Software Real Time Control, Heat in Hardware Can be Discharged in Time in order To Keep Detector from Temperature Change.
8. Analysis Software can Automatically Set Tube Voltage/Tube Current based on Sample Material, Shape, Size. Extend Light Tube Working Life and Improve Testing Precision 9.Support Large Sample Testing and flow guidance design.
Parameters
| 1 | Dimension | 650mm*450mm*350mm |
| 2 | Computer(Integrated) |
Intel(R) Celeron cpu1.6GHz,RAM:2G Hardware 60G Display:10inch |
| 3 | Sample cabin Dimension | 280mm*280mm*200mm |
| 4 | Weight | About 32 Kg |
| 5 | Working Ambient Temperature | 15-30℃ |
| 6 | Working Ambient Humidity | ≤85% (No dew) |
| 7 | CCD Pixel | 5 Mega-pixel |
| 8 | Sample | Solid,Liquid,Powder |
| 9 | Testable Elements | S-U |
| 10 | Collimator |
Facula φ 1mm,3mm,5mm (Software Automatic Option) |
| 11 | Minimum Detectability | Cd/Cr/Hg/Br≤2ppm ,Pb≤5ppm,Cl≤60ppm |
| 12 | Testing Duration | 100-200s(Software Automatic Adjustment) |
| 13 | Optimum Resolution | 145±5eV |
| 14 | Input Power |
AC 220V±10%,50Hz (Suggest Purifying Regulated Power Supply) |
| 15 | Rated Power | 128W |
| 16 | Radiation Protection Standard | GB18871-2002 GBZ115-2002 |
Instrument other parameters
1. Detector Cooling Type :Electrical Cooling
2. High voltage Output range :0-50kev,0-2mA
3. High Voltage Protection :Over voltage Self Protection, Self Restore
4. X-Ray Tube Window Material: Metallic Beryllium Window
5. X-Ray Tube Cooling Type :Air-Cooling
6. X-Ray Tube Filament Ampere :1.75-3.3A
7. X-Ray Tube Life :More than 20000H
8. Software Running Ambient: Win7/win8
Accessories
| Standard Accessories | ||
| 1 | Sample Cup | 2 pieces |
| 2 | Testing Note | 1 roll |
| 3 |
EU standard ERM®-EC680K |
1 piece |
| 4 |
EU standard ERM®-EC681K |
1 piece |
| 5 | Calibration Card | 1 piece |
| 6 | Approval Certificate | 1 piece |
| 7 | Operation Manual | 1 piece |
| 8 | Factory Radiation Report | 1 piece |
| 9 | Wireless Mouse and Keyboard | 1 set |
| Optional Accessories | ||
| Label Printer |
Technical Support and After-Sales Service
1.Complete Equipment Warranty: 2 years,Lifetime Technical Support Service
2.Free Maintenance for Non-human Factors Failures within Warranty, Standard Response Time: within 4 Hours,
3.Free Software Upgrade Service
