Product Details:
Payment & Shipping Terms:
|
| Product Name: | 7-Inch Touch Screen Walk Through Metal Detector | Model: | Model 33-zone 7-inch Touch Screen |
|---|---|---|---|
| Out Size: | 2240×670x850mm | Inner Size: | 2000x700mm |
| Package Size: | 2280x700x290mm | Power: | AC90V～240V 50／60Hz |
| Power Consumption: | 15W | Working Temperature: | -20℃～65℃ |
| High Light: | food metal detector,conveyor metal detector |
||

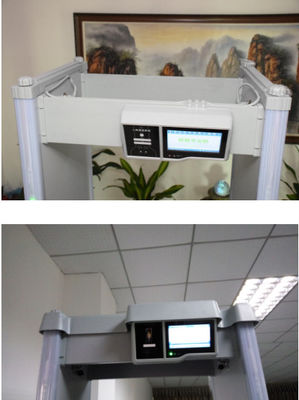

High Metal Detection Sensitivity 7-Inch Touch Screen Walk Through Metal Detector
Introduction:
This high-performance security door has the following advantages: high metal detection sensitivity; strong anti-interference ability; multiple detection areas, each area can be set separately sensitivity; self-diagnosis program, power-on self-test; 7-inch large liquid crystal capacitance touch Screen; using high-strength materials, can be fireproof, anti-corrosion, shockproof, etc.; can interfere with the background environment in real time.
A Number Of Advanced Features:
Multi-zone technology: 18/24/33/45 detection zone (optional), the sensitivity of each detection zone can be adjusted arbitrarily (with adaptive adjustment technology)
★ Touch screen technology: 7-inch HDMI touch LCD screen, the operation is more simple and easy to understand.
★ Mobile Internet technology: realize remote control of mobile APP, world zero distance (optional).
★ Superior shell protection technology: IP54 superior protection performance (optional). .
★ Adaptive Diagnostic System: System adaptive diagnosis and detection of power during startup.
★ Adaptive debugging system: The system can adaptively debug the detection standard when the system enters the debugging system.
★ Start-stop technology: The infrared device has automatic start-stop technology.
★ Alarm function: alarm light, alarm sound, any adjustment settings.
★ Working frequency band: The working frequency can realize manual or automatic frequency conversion.
★ Detection technology: Unexpected uniform detection technology, no blind spots.
★ Professional detection program: 72 standard detection programs for different occasions (providing upgrade service)
★ Working frequency band: 100-level working frequency band with a large range.
★ Security level: 100 security levels
★ Detection zone sensitivity: The sensitivity of a single zone can be up to 0-255.
★ Alarm sound mode: The system has a variety of alarm sound selection modes to suit different occasions.
| Functional configuration | |
| Model | 33-zone 7-inch touch screen |
| Out size | 2240×670x850mm |
| Inner size | 2000x700mm |
| Package size | 2280x700x290mm |
| Main chassis / detector door NW | 67KG |
| Main chassis / detector door GW | 75KG |
| Power | AC90V～240V 50／60Hz |
| Power consumption | 15W |
| Operating frequency range | 1-100 frequency bands |
| Working temperature | -20℃～65℃ |
| Installation Environment | Width 100cm* length 200cm (no metal minimum range) sheet horizontal |
| Location detection metal object accuracy range | The highest sensitivity ≥ 6g metal |
