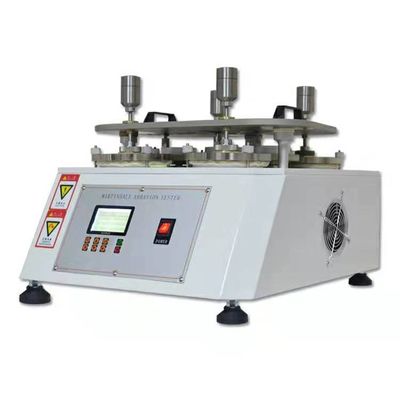

SATRA TM31 , ISO 12947 T Martin Date Abrasimeter 4 Station With Touch Display Screen

SATRA TM31 , ISO 12947 T Martin Date Abrasimeter 4 Station With Touch Display Screen
SATRA TM31 , ISO 12947 T Martin Date Abrasimeter 4 Station With Touch Display Screen

Large Image :  SATRA TM31 , ISO 12947 T Martin Date Abrasimeter 4 Station With Touch Display Screen

Product Details:

Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-5006B

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: 4 Station T Martin date Abrasimeter is packaged within wooden case.
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 50 sets / month
Detailed Product Description
Product Name: 4 Station T Martin Date Abrasimeter Station Number: 4 Station
Weight Of Pressure Hammer: 2385±10g Dimensions: 885mm×600mm×410mm(L×W×H)
Power: Ac220V,50Hz Maximum Dynamic Range: 24±0.5mm ,60.5±0.5mm
High Light:

rubber testing equipments

,

rubber hardness tester

Touch Display Screen , Weight 150kg 4 Station T Martin date Abrasimeter





Equipment description:



The theory: at a given pressure ,circular fabric specimen and the same material, carrying out friction Lissajous trajectory graph, after achieved the required rotation, evaluate the pilling degree of the specimen. Also applies to GB/T13775, ASTM D4966, ISO12947 and other fabric wear test. The theory: circular fabric sample at a certain pressure, rubbing with the standard abrasive according to Lisa if (Lissajous) curve’strajectory, leading to specimen damaged, use the times of specimen damaged to represent fabric abrasion wear resistance.



Main feature:



The instrument learn the advantages of domestic and foreign similar equipment’s design, it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate,computer system uses two counting methods, visual appearance, convenient setting, 8 station testing at the same time to improve test efficiency. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm, and a variety of trajectory matching accessories, can adapt to a variety of test methods standard.



Standard:



The pilling degree test of fabric of GB/T4802.2,ASTM D4970,ISO12945-2 etc.

The wear test of fabric of GB/T13775,ASTM D4966,ISO12947 etc.



Technical parameter:



Station number 4 station
Count display a. Estimated counting:0~999999 times
b. Total counting:0~999999 times
Maximum dynamic range 24±0.5mm ,60.5±0.5mm
Weight of pressure thing a.Gripper:200±1g
b. Cloth samples hammer:395±2g
c. Furniture accessories sample hammer:594±2g
d. Stainless steel butterfly piece:260±1g
Effective friction diameter of grinding block A type: 200g (1.96N) friction head ¢ 28.8-0.084mm
B type: 155g (1.52N) friction head ¢ 90-0.10mm
The relative velocity of Gripper and the grinding station 50-2r/min
Weight of pressure hammer 2385±10g
Dimensions 885mm×600mm×410mm(L×W×H)
Weight 150kg
Power Ac220V,50Hz
