AC 220V Rubber Testing Machine , 5N Rubber Plastic Film Coefficient of Friction Tester

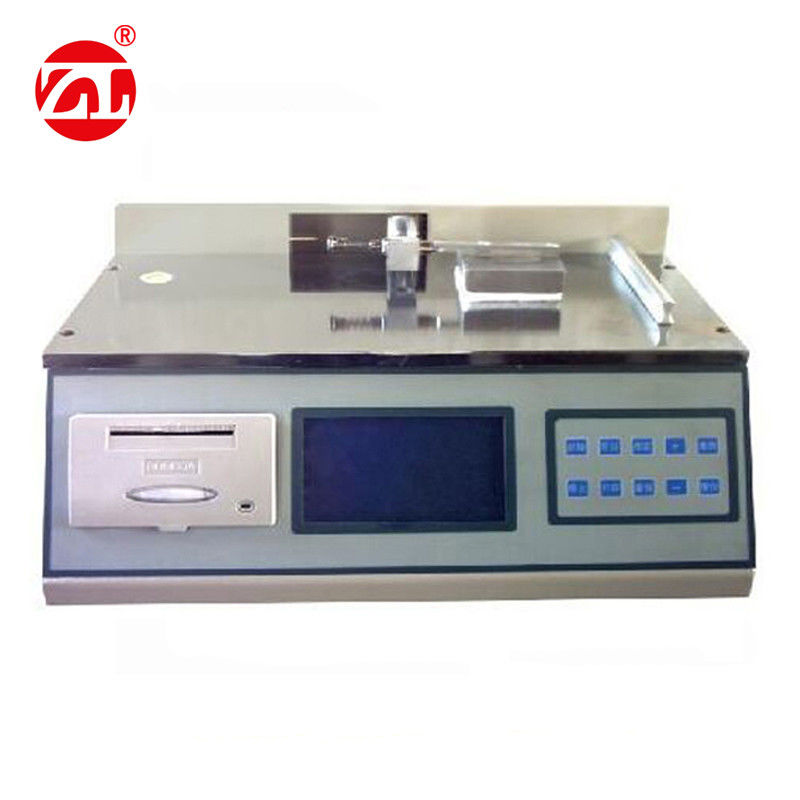

Large Image : AC 220V Rubber Testing Machine , 5N Rubber Plastic Film Coefficient of Friction Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3038

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Machine Name:	50KN Computer Servo Plastic Tube Ring Stiffness Test Equipment	Load Range:	0~5N
Accuracy:	0.5%	Stroke:	70MM, 150MM
Slider Weight:	200G	Test Speed:	100mm/min
Power:	AC 220V 50Hz	Warranty:	24 Month
Highlight:	rubber tensile testing machine , rubber testing equipments

AC 220V Rubber Testing Machine, 5N Rubber Plastic Film Coefficient of Friction Tester

Product Overview

The 5N Rubber Plastic Film Coefficient of Friction Tester is designed for testing static and dynamic friction coefficients of plastic films, slices, paper, and similar materials. By measuring material smoothness, this instrument helps control and adjust packaging technical parameters to meet product operational requirements.

This advanced, intelligent testing instrument features high accuracy and complies with international standards. It incorporates microcomputer processing technology with premium components, single-chip microcomputer, and touch screen interface. The system offers comprehensive functions including parameter testing, translation, adjustment, display, memory, and printing capabilities.

Key Features

Supports multiple test methods and standards (GB, ISO, ASTM) with free configuration
LCD display shows all test results, data, and curves
Wrapping connector driving system ensures stable and precise operation
Microcomputer-controlled with full keyboard operation
Automatic detection of material slide adhesive state and quantitative discrete analysis of sample test results
Flexible testing with free selection between static and dynamic friction coefficients
Stores up to 6 test results and data with curve display and query functionality

Technical Specifications

Product Name	Rubber Plastic Film Coefficient of Friction Tester
Load Range	0~5 N
Accuracy	0.5%
Stroke	70 mm, 150 mm
Slider Weight	200g (standard) - Supports testing with any slider weight
Test Speed	100mm/min
Environmental Requirements	Temperature: 10°C~40°C, Humidity: 20% RH~70% RH
Power	AC 220V 50Hz
Machine Dimensions	400(L) x 300(B) x 180(H) mm
Weight	10 Kg
