| Power: | 220v | Measuring Range: | 0.005~300g Or 0.005~600g |
|---|---|---|---|
| Density Accuracy: | 0.001 G/cm3 | Density Range: | 0.001—99.999g/cm3 |
| Test Time: | About 5s | Output: | RS-232C |
| Memory Mode: | Dynamic Memory | Warranty: | 12 Month |
| High Light: | rubber testing equipments,rubber hardness tester |
||
Product overview:
Using the Archimedes principle, according to ASTM D792, ASTM: D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T 611, GB/T11540, GB/T12206, GB/T5518.
Specifications:
| Model | Economic Digital Solid Liquid Densitometer | ||
| Measuring range | 0.005~300g | 0.005~600g | |
| Density accuracy | 0.001 g/cm3 | ||
| Density range | 0.001—99.999g/cm3 | ||
|
Solid model
|
Measurement of solid type |
Any form of solid density -- all kinds of metal products, rubber products, plastic products, plastic particles, film, floating body, powder, foam, dope, fasteners, pipe, sheet metal, wood, glass, metal, sponge product state |
|
| Measurement model | Archimedes' principle of solid universal test method | ||
| Test time | About 5s | ||
|
Memory Mode |
Two step memory mode |
||
|
Measuring the proportion of aircraft |
One injection molding professional gravity measurement frame(17.6*10.5*11.1cm L*W*H) |
||
|
Measuring sink |
One injection molding professional transparent sink(16.9*9.8*8.3cm L*W*H) |
||
|
results |
Density, volume, content percentage |
||
| Feature set |
Water temperature setting, the density of the measured medium setting, the density of material main material and secondary materials |
||
|
Material mixing percentage |
Features |
Automatically reads the percentage of two main substances mixed material |
|
| Set up |
Can be set freely material master, material density times |
||
| Display | Density value, main material mixing ratio | ||
| Fluid model |
Measuring the liquid type |
A: liquid liquid, viscous liquid, volatile liquid, corrosive, high temperature liquid, suspended liquid, emulsion. B: alcohol, flux, essence, blood, sodium chloride, glycerin, electrolyte, diesel oil, refrigerant, hydrofluoric acid, methylene chloride, ethyl ether, sulfate. And other similar liquid state are measurable |
|
|
The measuring principle |
Archimedes displacement method |
||
|
Measurement mode |
Group 1 | ||
| Test time |
Immediate measure |
||
|
Memory Mode |
Dynamic Memory |
||
|
results |
Density values |
||
|
Function Setting |
Temperature setting, the solution density is set, the set standard value and the measured weight by weight of the water weight values |
||
|
Correction mode |
A single bond automatic correction, the automatic detection function |
||
|
Measurements uthentication |
Distilled water verification |
||
|
Output |
RS-232C standard communication interface to facilitate the test data output and print |
||
|

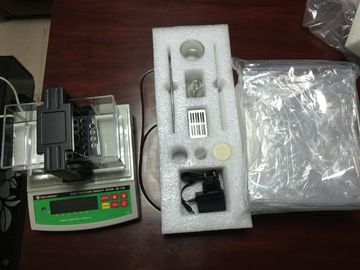

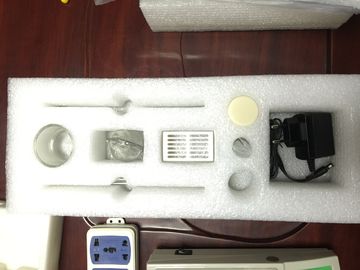

Standard Accessories |
Host a, tweezers, farmar, a thermometer, a, a, wind dust cover a, solid sink a, solid measuring table a, a set of particle measuring device, floating body parts of a set of measurement, liquid placed a boards, liquid measurement bracket a, DE - 20 - a standard liquid gauge component a, a power transformer |
||
|
Optional Accessories
|
1.DE-40 printer 2.DM-20B anti-corrosive liquid measurement components 3.DM-20A standard liquid measurement components |
||
| Power | AC~220V / 50HZ | ||
|
Output |
RS-232C standard communication interface to facilitate the test data output and print |
||
