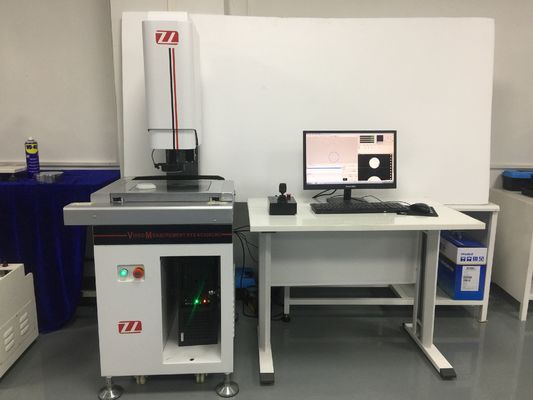

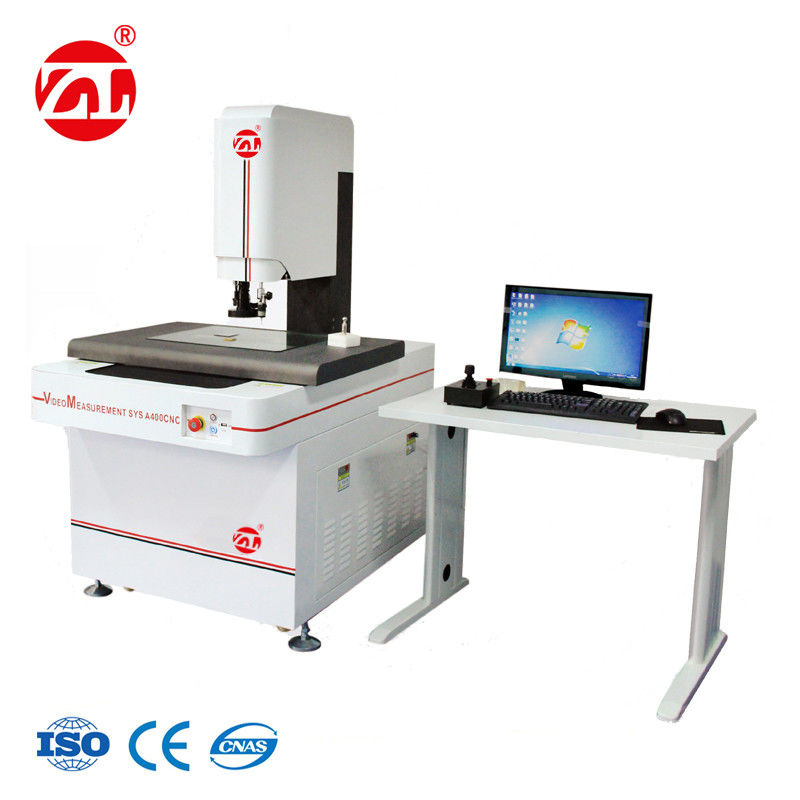

High Resolution Video Measuring Machine REICA 2.5D Precision 3 + L / 75 Micron

High Resolution Video Measuring Machine REICA 2.5D Precision 3 + L / 75 Micron
High Resolution Video Measuring Machine REICA 2.5D Precision 3 + L / 75 Micron

Large Image :  High Resolution Video Measuring Machine REICA 2.5D Precision 3 + L / 75 Micron

Product Details:

Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-1504

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged within wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Power: 220v 50hz Main Size: 700*560*850mm
Metal Platform Size: 345*250mm Glass Platform Size: 220*150mm
Linear Accuracy: (3+L/75)µm CCD: SONYchip1/3 Color CCD
Analysis Force: 0.001mm Repeat Accuracy: 0.002mm
High Light:

image measuring machine

,

image measurement system





REICA 2.5D precision 3+L/75 micron Video measuring machine



1.Uses:

REICA 2.5D precision 3+L/75 micron image measuring instrument is Usd to in all application area whose

goal is the coordinate,such as in machinery, electron, instrument and plastic industry.



2.Characteristic:

2.1Varifocus objective and cross curve generator is used as the measure aim-taking system

2.2This tester has many functions,such as data processing,showing,input,output function, especially workpiece adjusting function is very convenient.

2.3 High resolution with 9 section object glass,no need to re-choose the plotting scale when change the

multiplying power.

2.4 Use the R232 interface,After connecting the computer,it can measure the sample , data processing and output the data by using the computer.



3.Technical parameters:

Model ZL-VMS1510 REICA 2.5D precision 3+L/75 micron image measuring instrument
Main size 700*560*850mm
Metal platform size 345*250mm
Glass platform size 220*150mm
Real impulse stroke 150*100*120mm
Weight 130KG
Machine bottom 00level granite
Linear accuracy (3+L/75)µm
Surface lighting LED ring form super bright cold light source(luminance adjustable)
Outline shining LED super bright roundness light(luminance adjustable)
Calculate, calculate function REICA 2.5D precision measurement system software
Analysis force 0.001mm
Repeat accuracy 0.002mm
CCD SONYchip1/3 color CCD
eyepiece 0.5X(can choose 1X,2x)
object glass 0.7X~4.5X amplification factor 20X~120X
power supply AC90~264V 50/60Hz
Load 30KG
