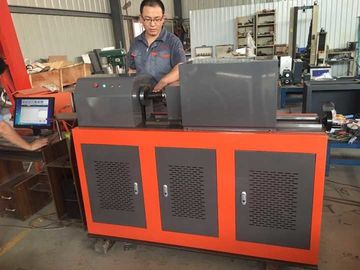

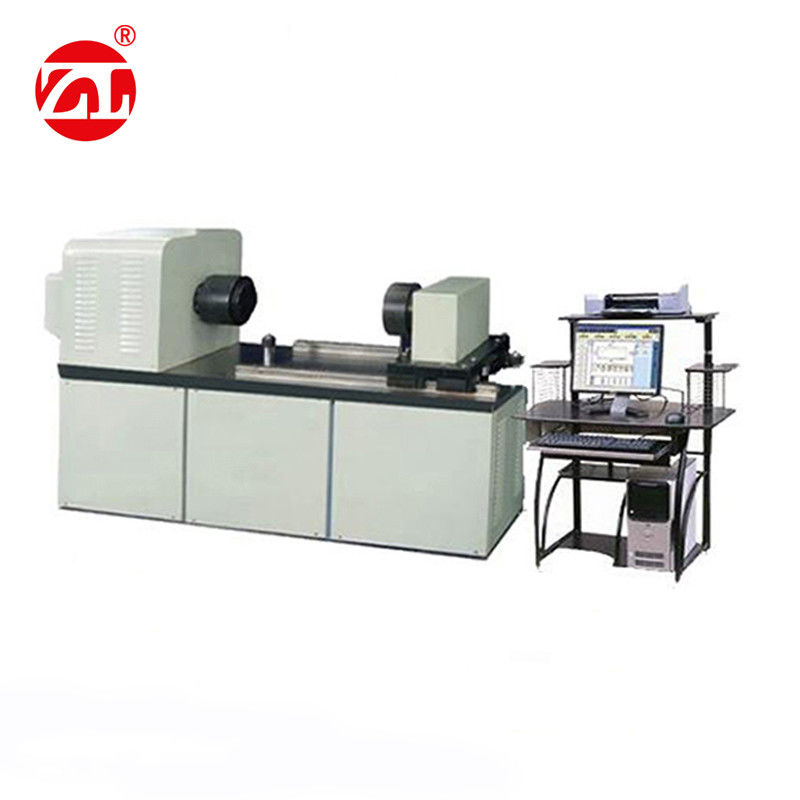

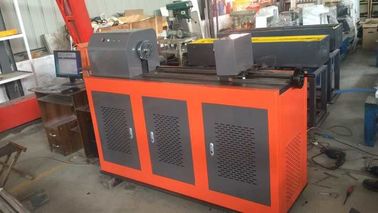

Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control

Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control
Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control

Large Image :  Spring Torsion Cable Testing Machine Overload Protection Function / Computer Control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Zhongli
Certification: ISO,CE
Model Number: ZL-2107
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged in wooden case (fumigation free)
Delivery Time: 10~15 days after the order confirmed
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Max. Test Torque:: 100~2000Nm The Measurement Of Torque:: 2%-100%FS
Errors Show Test Torque:: Less Than 1%(precision 0.5%) The Relative Error Of Angle:: Less Than 1%
The Power Supply Voltage:: AC220V The Maximum Distance:: 600/650mm
The Test Speed And Accuracy:: Better Than Showing The Value Of +1% Corner Shows The Minimum Resolution:: 0.01 Degrees
High Light:

cable testing device

,

cable harness tester



Computer Control Spring cableTorsion Testing Machine


Categories:
wire torsion testing machine name: microcomputer control torsion testing machine

The main characteristics of use:
This machine is loaded by the computer control of Japanese imports of AC servo control system, the AC servo motor, cycloidal reducer drives the drive chuck rotating load, torque and torsion angle detection using high precision torque sensor and photoelectric encoder, computer dynamic display test torsion and let torque curve, loading rate, peak test power etc.. Detection method accords with the test method of torsion GB10128-88 metal at room temperature requirements.The testing machine is mainly used for torsion testing of metallic materials or non-metallic materials, can also carry out the torsion test for parts or components, aerospace, building materials industry, transportation, scientific research departments, various colleges and universities and industrial and mining enterprises is used to determine the material mechanics laboratory torsion testing instrument performance necessary.

The main function and characteristics:

1. Loading ways: imported AC servo motor and driver, can be both positive and negative direction of the two applied torque;
2. Detection of torque and torsion angle: high precision of symmetrical torque sensor, detecting torsion angle with high precision LEC type photoelectric encoder.
3. Operation: Manual (with forward and reverse the manual operation button) and computer operation in two ways;
4. Special control software based on WINDOWS platform, using the way of human-computer interaction analysis and calculation of the subjects index of mechanical properties of materials, test data automatic processing, dynamic display of the test curve, the test results can be stored, print, also artificial intervention analysis process to improve the accuracy of the analysis.
5. With overload protection function
6. Using full digital microcomputer closed loop servo control


Parameter:

Maximum test torque 100/200/500/1000Nm/2000Nm
The accurate measurement of torque 2% - 100%Fs
Value of relative errors show test torque Less than 1% (precision 0.5%)
Value repetition indicated torque relative error test Less than 1% from each of the 20% ranges
Angle measurement range 0.01 - 9999.9 degrees
The relative error of angle Less than 1%
Torsion angles (small angle measurement) shows the Min. resolution 0.002 degrees
Reverse speed range 0.18 degrees, 720 degrees /min, stepless speed regulation
Corner shows the minimum resolution 0.01 degrees
The test speed and accuracy Better than showing the value of + 1%
Test the direction of rotation Bidirectional
The power supply voltage AC220V
The maximum distance between two clamping head for 600mm / 650mm
Clamp the specimen size 8 - Phi Phi 32mm
8 - Phi Phi 40mm


1. How to choose the most suitable fitness equipment steel tensile testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test
you need to do and the required specification.


2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is
15-20 working days after deposit receipt. If you are in urgent need, we can consider making
special arrangement for you.


3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to
meet your needs.


4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help
to arrange hotel and pick up you from airport.


5. Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,
UK, Italy,Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and
Vietnam, Iran, Brazil...and so on.


6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support
and part parts change, necessarily, our engineers may go to your place for better service.


7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered
many testing machines abroad by sea or by air without damage.


8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing
and debugging - balance payment - packing - delivery - customer receiving - after service.


9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
