Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Seal Temperature: | Rt Ro 300C |
|---|---|---|---|
| Dwell Time: | 0.1s-999.9s | Dwell Pressure: | 0.05MPa-0.7MPa |
| Accuracy: | ±0.2°c | Warranty: | 12 Month |
| High Light: | carton test machine,carton bursting tester |
||

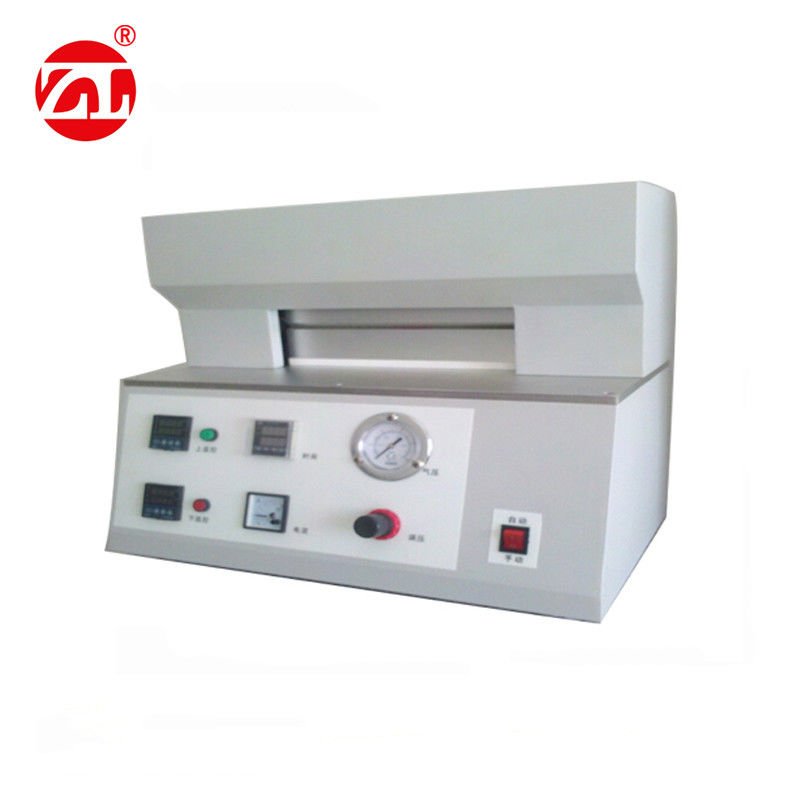

Packaging Heat Seal Strength Testing Equipments
Summary:
Packaging Heat Seal Strength Tester seals the specimen under specified temperature, pressure and dwell time,
to test the heat seal strength of laminated films.
MRE(Meal Ready to Eat) Packaging Heat Seal Strength Tester conforms to standards of ASTM F2029.
MRE(Meal Ready to Eat) Packaging Heat Seal Strength Tester has below features:
1. Mechanical-electrical integration of control system
2. Seal parameters could be changed in certain extent and be displayed on LCD
3. Multifold heat sealing jaws with different areas according to customer's requirement, and easy to change
4. P.I.D. temperature controller
5. Robust model with Multi-stations that can be work under gradient temperature is available
Technical Data:
| seal temperature | room temperature-300°c (accuracy ±0.2°c) |
| dwell time | 0.1s-999.9s |
| dwell pressure | 0.05MPa-0.7MPa |
| seal surface | 330mm x 10mm |
