6 Zone Walk Through Metal Detector Machine With Door Frame / LED Alarm Light

small.img.alt small.img.alt small.img.alt small.img.alt

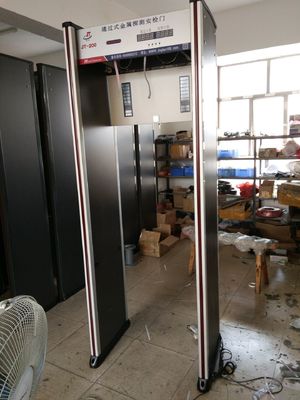

Large Image :  6 Zone Walk Through Metal Detector Machine With Door Frame / LED Alarm Light

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-4015
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged within wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 set per month
Detailed Product Description
Power: 220v 50hz Detecting Zone: 6 Zone
Through Rate: More Than 60 Million / Per Minute Operation Temperature: -20 °C To 55 °C
Tunnel Size: 2010*700*560mm Warranty: 12 Month
High Light:

food metal detector


conveyor metal detector



Door Frame 6 Zones Walk Through Metal Detector Machine



1.Six interlaced detection regions of the same high with the body and combining,

2.LED alarm light on column, displaying the area of metal detected accurately

3.Four pairs of infrared emission and the receiver to prevent detection blind spot

4.100% Ferrous & non-ferrous metal detect

5.With aluminum alloy binding tape, up to 99% non-condensing

6.Using microprocessor digital control technology, anti-interference ability,

7.Each region has 100 adjustable sensitivity, in accordance with the requirements in the 0-99 arbitrary regulation, and gets rid of the interference of belt, zippers and other objects.

8.Pass-through number and the alarm frequency can be counted automatically

9.Can be used independently, or several detection doors net work (minimum spacing of up to 40CM)to meet the flow requirements of pass through

10.Password protection function: to prevent non-authorized personnel to amend the parameters.

11.Assembled structure: easy installation. User-friendly diagnostics identify fault condition,

12.Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards Basic safety: meeting the requirements of GB4793.and program to be store in non-volatile memory; Comply with IP20(60529) ;Personal safety: Satisfied NILECJ-0601.

13.EMC electromagnetic radiation in line with the standards: comply EN60950,no harm to the wearers of heart pacemakers, pregnant women, film and magnetic recording materials.



Power supply AC220V/50Hz or AC110V/60Hz
Back up battery 4hours or 8 hours according requirement
Power consumption less 35W
Operation temperature -20 °C to 55 °C
Through rate more than 60 million / per minute
Tunnel size 2010*700*560mm
Dimension 2230*810*560mm
Weight about 80kg
Package size 2280*665*220mm(Main body)
780*480*290mm(Host processor)
