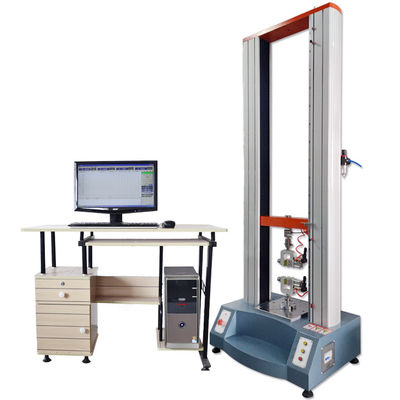

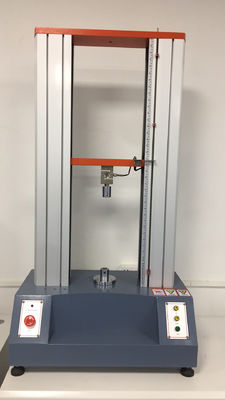

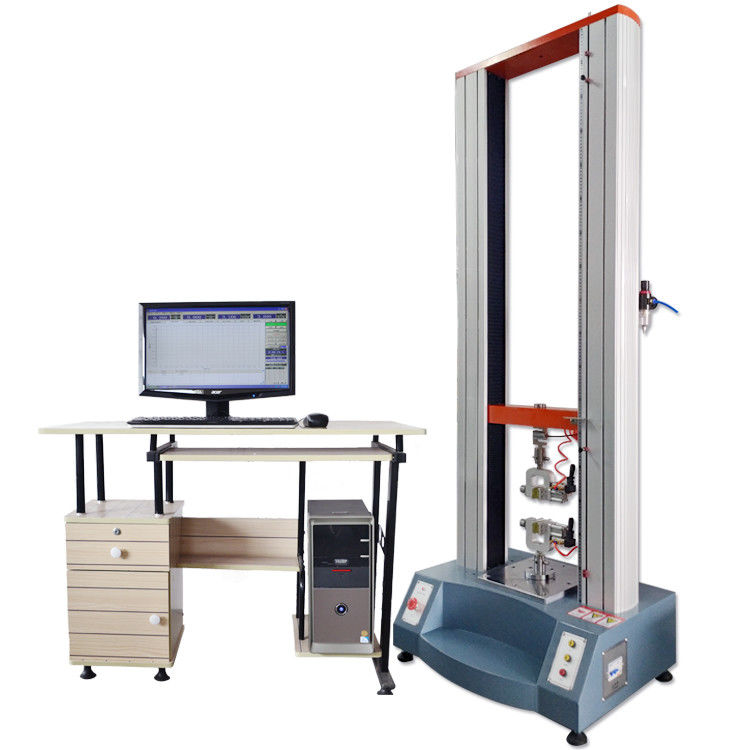

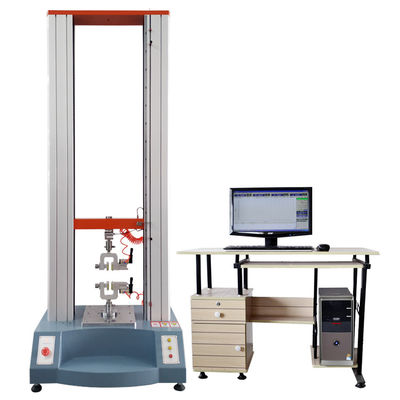

20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint

China 20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint supplier
20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint supplier 20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint supplier 20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint supplier 20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint supplier

Large Image :  20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint

Product Details:

Place of Origin: China
Brand Name: ZL
Certification: ISO, CE
Model Number: ZL-8002D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Packaged within safety wooden case (fumigation free)
Delivery Time: 7-10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 SET PER MONTH
Contact Now
Detailed Product Description
Material: Sheet Metal + Spray Paint Usage: Strength Testing Machine
Max Load: 5KN,10KN,20KN Resolution: Ax Load 1/200000
Effective Tensile Stroke: 800mm (Can Be Customized) Effective Testing Width: 400mm (Can Be Customized)
Testing Speed: 0.001 To 500mm/min Power: 220V 50Hz
Warranty: 12 Month Certificate: CE, ISO





 20KN Computer Servo Electronic Universal Tensile Strength Testing Machine



Equipment summary:

ZL-8002D Universal tensile strength testing machine price is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rolled base station, makes it all very convenient. In particular, it suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 5000KG non-metallic and metallic materials within the test.



Meet the criteria:
"GB/T16491-1996 electronic universal testing machine"



Applicable industry:

ZL-8002D Universal tensile strength testing machine price widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.



Technical parameter:

Model ZL-8002D Universal tensile strength testing machine price
Max load 100,200,500,1000,2000,5000kg (optional)
Accurate grade 1 grade /0.5 grade
Effective measuring range

Force from 0.2% to 100% (1grade) / from 0.4%

to 100% (0.5 grade)

Measuring accuracy Tolerance ±1% / tolerance ±0.5%
Tester resolution Max load 1/200000, and constant resolution
Load sensor

Basic configuration sensor max load: from four sensors to

choose one

Effective tensile stroke 800mm(can be widened according to customers requirement )
Effective testing width 400mm(can be widened according to customers requirement )
Testing speed From 0.001 to 500mm/min
Accuracy of displacement measurement Tolerance: ±0.5% / tolerance: ±0.2%
safety Electronic-limit protection
Testing platform moving device Fast /slow ( two speeds to control), can jog
Return Back

Manual or automatic operation, After the test, the moving

iron return to initial position with the highest speed by manual

or automatic operation

Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 1200*530*1800mm(L*W*H)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range From normal temperature to 200 degree
Temperature display Digital display
Inside space 200*300*500mm (W*L*H )
Cooling system Compression from France
Power supply 220V50HZ or according to the requirement
Power

0.75KW ( depending on different demand of force, using

different motor)

weight 300 KG
Units KG,N,LB, TON can be exchanged



20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint



Exhibition hall:



20KN Computer Servo Electronic Universal Test Machine for Sheet Metal / Spray Paint
