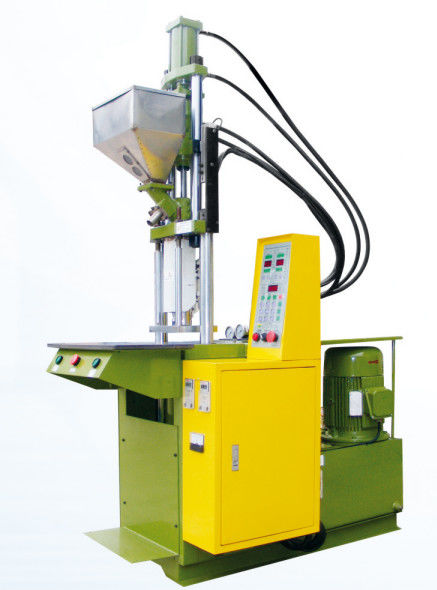

Vertical Mold Opening Injection Machine Suitable For Insert Molding

Vertical Mold Opening Injection Machine Suitable For Insert Molding
Vertical Mold Opening Injection Machine Suitable For Insert Molding
video play

Large Image :  Vertical Mold Opening Injection Machine Suitable For Insert Molding

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3059
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Vertical Mold Opening , Injection Machine is packaged within wooden case.
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 sets / month
Detailed Product Description
Product Name: Vertical Mold Opening , Injection Machine Screw Stroke: 100mm
Number Of Temperature Control: 1+2 Material Hopper Capacity: 15/20 L
Oil Reservoir Capacity: 80/100 L Pump Output: 23/26 L/min
High Light:

rubber tensile testing machine

,

rubber testing equipments

Vertical Mold Opening , Injection Machine , Suitable for Insert Molding





Product Overview:



1. Vertical mold opening, vertical injection, suitable for insert molding

2. Nitrided steel screw, material tube, high torque hydraulic motor drive, multi-stage injection pressure, good plasticizing performance.

3. Direct pressure mother-mold lock cylinder design, rapid mold clamping, low-pressure safety mold clamping, automatic mold closing, multiple pressure control, high safety and improved mold life.

4. Electrical protection device, no mistakes, maintenance operator safety.

5. Automatic fault display, maintenance is quick and easy.

6. Electronic control and hydraulic use brand-name parts, quiet, precise and durable.

7. Multi-stage temperature control, multi-stage injection pressure, rate of fire, back pressure stepless adjustment, suitable for molding of precision plastic parts.

8. Optional servo energy-saving motor.

9. This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.

10 Two column and four column (option)



Technical parameters:



Type Model Unit ZL-3059-20 Zl-3059-25 ZL-3059-28 ZL-3059-30
Injection system Screw diameter mm 20 25 28 30
Injection pressure Kg/cm² 1715 1164 816 886
Theoretical shot volume cm³ 31 49 56 70
Max.injection weight(PS) g 29 60 80 84
Injection rate cm³/sec 20 30 30 68
Screw stroke mm 100
Max.screw speed rpm 0-155 0-205
Nozzle contact force tons 2.0 2.4
Nozzle retraction stroke mm 133 140 165
Number of temperature control - 1+2
Material hopper capacity L 15 15 20
Clamping System Clamping Force tons 15 20 30
Opening Force tons 7 7 6.5
Platen Size mm 450*290 460*310 520*370
Distance Between Tie Bare mm 280*140 303*153 350*205
Min. Mold Height mm 140/80 160/100 160/100
Opening Stroke mm 160 180 180
Max. Open Daylight mm 300/240 340/280 340/280
Ejector Force tons 1.3 1.3 1.3
Ejector Stroke mm 35 35 35
Sliding System Slide Stroke mm - - -
Max. Mold Weight kg - - -
Station Clearance mm - - -
Hydraulic Power System Max. Hydraulic Pressure Kg/cm²(mPa) 140 140 140
Pump Output L/min 23 23 26
Oil Reservoir Capacity L 80 80 100
Cooling Water Consumption /hr 400-600 400-600 400-600
Pump Motor Power KW 3.5 4 4
Barrel Heating Power KW 2.2 2 2.7
Total Wattage KW 5.5 6 6.2
Others Machine Weight tons 0.68/0.8 0.68/0.8 1.1/1.3
Machine Dimensions L*W*H mm 1550*900*2350 1400*900*2200 1570*950*2350
Shipping Weight tons 0.8/0.9 0.88/0.9 1.3/1.5
Shipping Measurements L*W*H mm 1750*1050*2400 1500*1000*2300 1670*1050*2450
