Steel Wire Universal Tensile Strength Test Machine For Quality Supervision Station

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

Steel Wire Universal Tensile Strength Test Machine For Quality Supervision Station

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Steel Wire Universal Tensile Strength Test Machine For Quality Supervision Station

Product Details:
Place of Origin: China
Brand Name: Zhongli
Certification: CE,ISO
Model Number: ZL-8007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 7-10 days after make order
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Power:: Hydraulic Product Name:: 1000KN Steel Wire Universal Tensile Strength Tester
Max Load:: 1000KN Test Force Showed The Relative Error:: ≤indicating Value±1%
Test Force Resolution:: 0.03kN Displacement Measurement Resolution:: 0.01mm
Maximum Move Speed Of Piston:: 50mm/min Maximum Tensile Test Space:: 1000mm
Diameter Of Round Specimen Clamp Jaw:: 15mm,20mm Space Stretching:: 550mm
High Light:

tensile test machine

,

tensile strength testing machine

1000KN Steel Wire Universal Tensile Strength Tester

1. Introduction:

1000KN Steel Wire Universal Tensile Strength Tester is dedicated to test the mechanical properties of

prestressed steel strand,The machine is equipped with Lenovo computers, HP printers, large gauge electronic extensometers, optical encoder, and full-featured general-purpose test software, you can easily complete the test function,Besides, equipt with a specialized steel strand extension to ensure that the specimen middle fracture,further improve the test success rate. You can check and print test results (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time,distortion - time) six curve and related test data with the software self-test function that can self-diagnose problems, detail please review software instructions.Can test strand tensile strength can be measured to provide non-proportional extension strength, elastic modulus, elongation and other mechanical properties.It is industrial and mining enterprises, research institutes, universities, engineering quality supervision station ideal for test equipment and other departments.

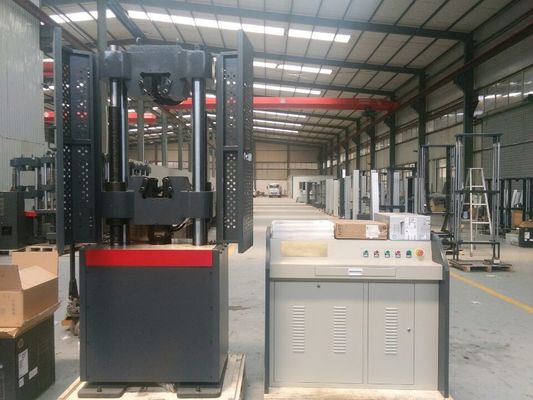

ZL-8007 Steel strand electro-hydraulic servo-type ...

2. Technical specifications:

Product Name 1000KN Steel Wire Universal Tensile Strength Tester
Max load 1000kN
Test force measuring range 50~1000kN
Test Force showed the relative error ≤indicating value±1%
Test Force Resolution 0.03kN
Displacement measurement resolution 0.01mm
Deformation measurement accuracy 0.01mm
Maximum tensile test space 1000mm
Compression space 602mm
Piston stroke 150mm
Diameter of round specimen clamp jaw 15.20mm(Other specifications reprovision )
Maximum move speed of piston 50mm/min
Clamping method Automatic clamping
Host machine outside size mm 890*660*2500

Force measurement cabinet

outside dimensions mm

1000*700*1400

Space stretching from the two

pillars distance

550mm
Net weight

3000KG





Steel Wire Universal Tensile Strength Test Machine For Quality Supervision Station 0



Steel Wire Universal Tensile Strength Test Machine For Quality Supervision Station 1
