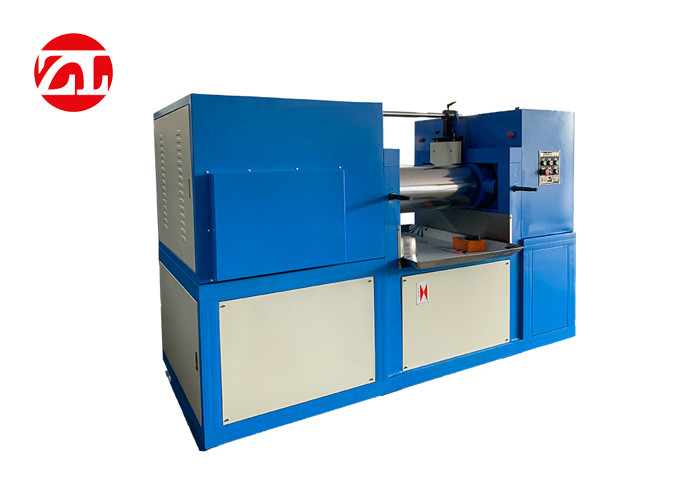

Humanized PLC Control 14 Inch Lab Two Roll Mill

Humanized PLC Control 14 Inch Lab Two Roll Mill
Humanized PLC Control 14 Inch Lab Two Roll Mill
video play

Large Image :  Humanized PLC Control 14 Inch Lab Two Roll Mill

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3018
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 76mm ( 3 inch )Diameter Two Roll Mill is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets / month
Detailed Product Description
Product Name: 14 Inch Lab Two Roll Rubbers And Plastics Mixing Mill Machine Length Of Roller Face: 300mm
Front Roll Surface Speed: 19rpm Roll Gap Range: 0-3mm
Driving Power: 1 Kw Power: 380V 3 Phase 50-60hz
Heating Mode: Electricity Heating , Oil Heating ( Option) Roll Temperature: Room Temperature -- 300℃
High Light:

PLC Control Lab Two Roll Mill

,

Humanized Lab Two Roll Mill

,

Lab Two Roll Mixing Mill Machine

14 Inch Lab Two Roll Rubbers And Plastics Mixing Mill Machine





Introduction:



Two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory

ZL-3018 Two roll mill.pdf



Catalog about Rubber Products:

rubber machine.pdf



Feature:



1. Construction of mill rolls: drilled roll, bored roll, grooved roll



2. We can design speed ratio as per customers' formula and processing requirements.



3. Frame, frame cap and base are welded and treated by annealing for stress relieving.



4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.



5 Brake and emergency stop device can ensure the safety of personnel and equipment.



6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.



7 Human nature designed controlling system ensure labor safety.



Intelligent control panel and PLC control system

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.



Technical parameters:



Model   ZL-3018-76 ZL-3018-120 Zl-3018-160 ZL-3018-200 Zl-3018-230 Zl-3018-300 ZL-3018-400
Diameter of roll mm 76 120 160 200 230 300 400
Length of roller face mm 300 350 350 500 650 650 900
Mixing Capacity kg 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed rpm 19 19 19 19 19 19 19
Friction ratio   1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range mm 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power KW 1 1.5 2.2 7.5 11 30 37
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300
Roll Hardness HRC 50 ~ 60
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device It have 6 safety buttons and safety guard is option
Machine weight kg 160 460 660 860 1960 2960 3800
Overall dimension mm 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580

5295x1789

x170

Power 380V 3 phase 50-60hz

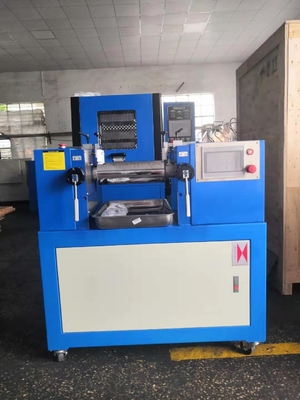

Humanized PLC Control 14 Inch Lab Two Roll Mill 0

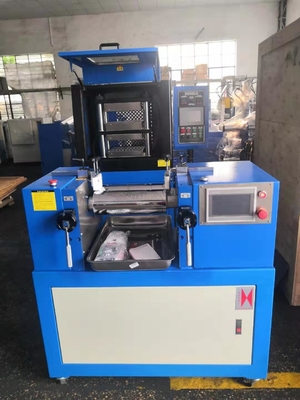

Humanized PLC Control 14 Inch Lab Two Roll Mill 1

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.



Companies with technical support, marketoriented, fundamental human. Have a high level of professionalism, experience and innovative research team and carved small peck production team. Companies with the most advanced technology, the most stable quality, best price, best after sales service, from installation and commissioning, professional training, to solve practical problems of customers, providing 24-hour technical advice. company's products among consumers enjoy higher status, with many agents to establish a long-term stable cooperative relations.



Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.



Provide our customers with better overall solution laboratory, including laboratory design, planning, renovation and equipment selection, installation, training, maintenance, Comparative testing management system, such as one-stop authentication technology services.



Promises: Two year free maintenance of all equipment, maintenance of life, welcome to consult the discussion!

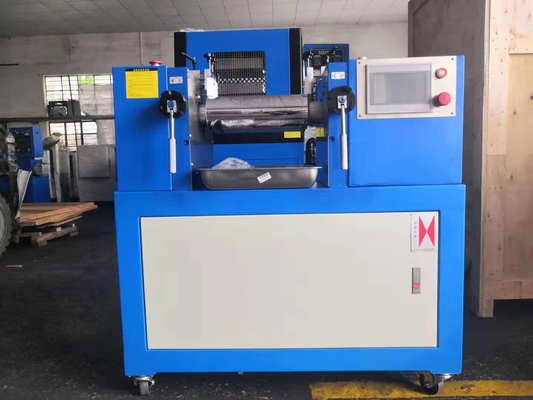

Humanized PLC Control 14 Inch Lab Two Roll Mill 2
