| Product Name: | YY0469-2011 Automatic Ignition Mask Flame Retardant Performance Tester | Flame Temperature: | 800 ± 50 ℃. |
|---|---|---|---|
| Movement Speed Of Head Mold: | 60 ± 5mm / S | Flame Height: | 40 ± 4mm |
| Distance Between The Top Of The Combustion And The Bottom Of The Sample: | 20 ± 2mm | Scope Of Application: | Surgical Mask |
| High Light: | abrasion resistance testing machine,yarn twist tester |
||

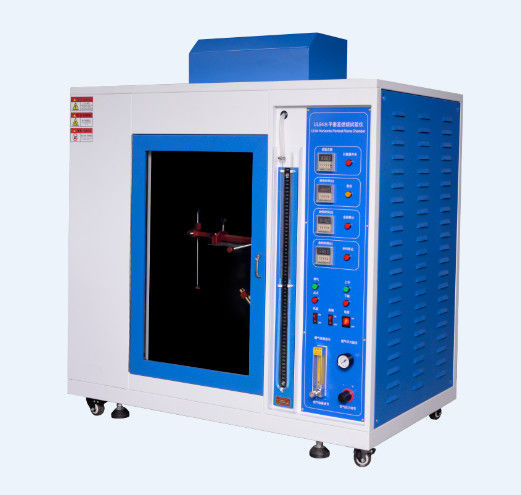

YY0469-2011 Automatic Ignition Mask Flame Retardant Performance Tester
Testing standards:
YY0469-2011 medical surgical mask
The flame retardant performance tester of medical surgical masks produced by our company is used for the flame retardant performance testers of surgical masks. Meet the test standard YY0469-2011 medical surgical masks.
Equipment Features:
1. Automatic ignition.
2. Digital display of flame temperature.
3. Automatic movement detection.
Technical parameters:
1. Flame temperature : 800 ± 50 ℃.
2. Movement speed of head mold: 60 ± 5mm / s.
3. Flame height : 40 ± 4mm.
4.Distance between the top of the combustion and the bottom of the sample : 20 ± 2mm
Technical parameters:
| Product name | Mask flame retardant tester | |
| Basic principle | to conduct the combustion test by adjusting the propane unit | |
| Flame temperature | 800±50℃ | |
| 800±50℃ | 0.1s | |
| Test medium | propane | |
| Control mode | automatic control | |
| Scope of application | surgical mask | |
Configuration list:
| Name | Unit | Quantity | Remarks |
| Temperature sensor | set | 1 | collects temperature |
| Crate | set | 1 | plastic spraying case |
| Metal head die | pc | 1 | metal head die |
| Time relay | set | 1 | timing |
| Electric appliance | set | 1 | Zhengtai |
| Flame regulator | set | 1 | regulate flame temperature and height |
| Motor rotation device | set | 1 | rotary motor |
