Product Name: Long Conveyor Belt Metal Detector Equipment For Bulk Puffed Food Usage: Bulk Puffed Cookies, Potato Chips, Instant Noodles Etc
Detection Width: 30-80 Cm, Customized Load Ability: 20KG
Speed Of Belt: 25M/min (Fixed Speed) Application: PU Bag Package
High Light:

food metal detector

,

metal detector checkweigher

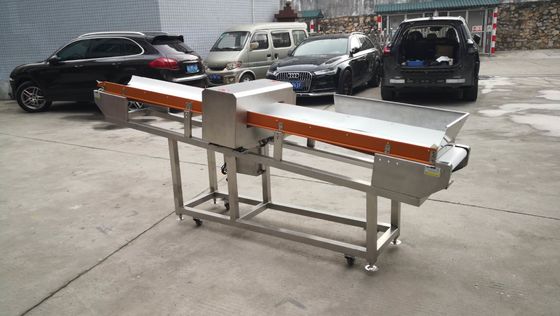

Long Conveyor Belt Metal Detector Equipment For Bulk Puffed Food





Application:



 If is widely used to test bulk puffed food such as cookies, Potato chips, instant noodles etc.



Description:



ZL-4001B is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and

memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.

1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.

9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65



Specification:



Detection width : 30-80 cm, Customized
Detection height: 8-50cm Customized
Detection sensitivity: See below table
Alarm mode: The buzzer alarm, the motor automatically stop
Transfer speed: 25 meter / min or you can select adjust speed
Power: 100-265VAC, 50-60Hz (According to customer request)
Size: (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system Option



The reality detector sensitivity depends on the products and operating environment . Please kindly see below:



Detected Height(mm) 80 100 150 200 250 300 350
Belt Width(mm) 250 250 400 400 400 400 400
Belt length 1500



Detector sensitivity(mm)

Fe 0.8 Fe 1.0 Fe 1.2 Fe 1.5 Fe 2.0 Fe 2.5 Fe 3.0
SUS 1.0 SUS 2.0 SUS 2.5 SUS 2.5 SUS 3.0 SUS 3.5 SUS 4.0
N-Fe 1.0 N-Fe 1.5 N-Fe 2.0 N-Fe 2.0 N-Fe 2.5 N-Fe 3.0 N-Fe 3.5
Speed of belt

25M/min (Fixed speed) ;

If you need adjust 5-40 M/min , please inform us before order

Load ability 20KG
Count 100
Warning method Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways when has auto-reject system ,belt continue and rejecting the goods
Application NPU bag package etc.
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%
