| Product Name: | Semi-automatic Bursting Strength Tester | Capacity: | High Pressure 0~100 Kg/ Cm^2 (0.1kg/cm^2) |
|---|---|---|---|
| Accuracy: | ± 0.5% | Pressure Range: | 250~5600kpa |
| Specimen Clamping Force: | >690kpa | Display: | LCD |
| Power: | 1 , AC220± 10%, 50 Hz | Material Of The Ring: | Stainless Steel SUS304 |
| High Light: | paper test equipment,carton bursting tester |
||

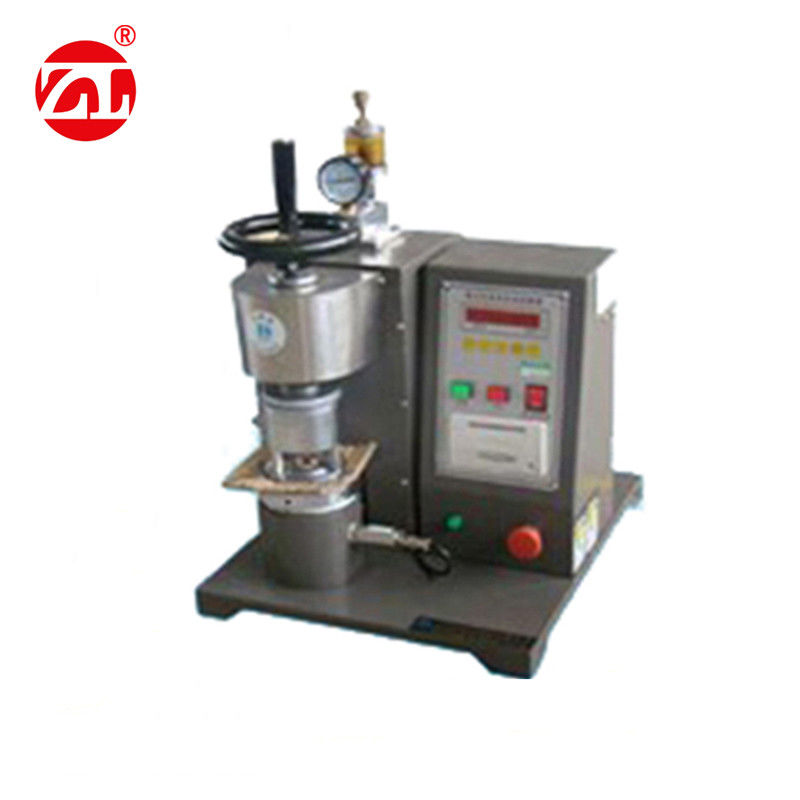

LCD Display Semi-automatic Bursting Strength Tester For Packaging Materials
1. Product Description:
This series of products using digital display pressure, test material broken down, automatically retain maximum rupture strength value, indicating approach to digital display pressure, capacity is 0-100kgf/cm^2.They can be widely used in packaging materials, including the general paper, corrugated paper, toilet paper, wrapping paper, etc. Used in leather, cloth, packaging film etc, can be used for product quality monitoring effectively.
2. Design criteria:
JIS-L1004,L1018,L1031,K6328,P8131,P8112及ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
3. The main technical parameters:
| Model | HD-503 |
| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (sitchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method | Digital |
| Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/4 HP |
| Operation Method | Semi-automatic |
| Dimension (L×W×H) | 450×380×550 mm |
| Weight | Approx. 68 kg |
| Power | 1 , AC220± 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
| Optional Configuration | Printer |
