Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing

Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing
Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing
video play

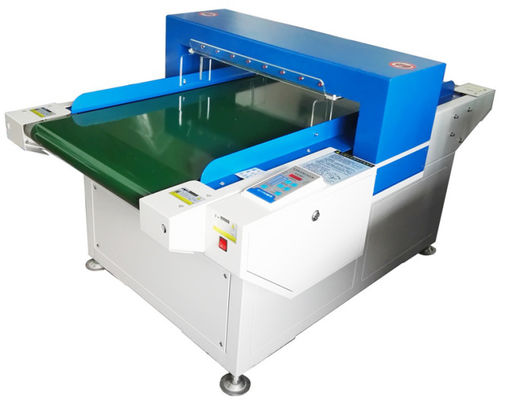

Large Image :  Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-4003A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Industrial Textile Conveyor Belt Metal Detector is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets / month
Detailed Product Description
Product Name: Industrial Textile Conveyor Belt Metal Detector Detecting Sensitivity: Diameter 0.8 Mm To 2.5mm Iron Ball
Sensitivity Adjust: 1-10 Level Detecting Height: 10-30cm
Detecting Width: 40-180cm Rated Output: 60W
Conveying Speed: 24m/min(50Hz),32m/min(60Hz) Power: AC220V
High Light:

food metal detector

,

conveyor metal detector

Industrial Textile Conveyor Belt Metal Detector , Auto Digital Signal Processing





Overview:



Textile Needle Detector ,In the principle of using magnetic, textiles, toys residual broken needle.To meet the safety requirements.



Application:



Mainly used for detecting ferrous metal that load or drop in raw materials and products in the field of toy costume, shoemaking, chemical industry, leather, knittingetc.

Clothes, textile, bra, baby products, shoes, socks, gloves, etc detection lost pin and scrap

iron kind of impurities in the products., ensure product without iron impurity pollution,

supply reliable quality guarantee.





Quick detail:



  • Apply self-developed patent technology.
  • Equipped with latest microchip , reliable with excellent performance.
  • Sensitive and anti-jamming.
  • Automatically digital signal processing through the whole process.
  • Easy operate , history data can be processed and saved automatically before system switched off.
  • Self-designed high-frequency power switch.
  • Integrated and optimized design for reducing components , replaced electronic system by computer control , lower malfunction.
  • Microcomputer controlled motor to extend working life.
  • Precise counter device.



Feature and Application:



1. High sensitivity and strong interference immunity.
2. Light structure and move conveniently.
3. Various of specifications of inspection window which can be chosen at will according to customers' needs
4. Quick conveying speed, applicable to pipeline operation.
5. Matches the pipeline operation or automatic control device.



Detecting Sensitivity diameter 0.8 mm to 2.5mm iron ball
Sensitivity adjust 1-10 level
Detecting Width 40-180cm ( It can be customized)
Detecting Height 10-30cm
Alarm method Buzzer,Lamp
Conveying speed 24m/min(50Hz),32m/min(60Hz)
Power AC220V
Rated Output 60W
Body size 185cm(L)*105cm(W)*95cm(H)



Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing 0



Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing 1



Industrial Textile Conveyor Belt Metal Detector Auto Digital Signal Processing 2
