20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling

20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling
20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling
video play

Large Image :  20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3022
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 20T Double Layer Hot Press Hydraulic Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 sets / month
Detailed Product Description
Product Name: 20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling Temp. Range: Room Temp. ~300℃
Timer: LED Display,time Range 0.1S~99min~9.9hr Heating Type: Electrical Heating Module
Pressure Surface: Mirror Chrome Plated Oil Cylinder Stroke: Max 200mm
Temp. Controller: PLC Touch Screen, The Value Indicate Output Key Words: Hot Press Hydraulic
High Light:

rubber tensile testing machine

,

rubber hardness tester

New Revision 20T Double Layer Hot Press Hydraulic Machine With Water Cooling





Instruction:


A new generation of ZL-3022 with beautiful new revision.The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.



Technical Parameters:



Capacity 10~50ton ( Option )
Temp. Range Room temp. ~300℃
Temp. Controller PLC touch screen, the value indicate output
Timer LED display,time range 0.1S~99min~9.9hr
Heating type Electrical Heating module
Hot pressure plate 300×300mm ( can be customized)
Cold pressure plate 300×300mm ( can be customized)
Distance of pressure plate 100mm
Pressure material SKD chromium-molybdenum alloy
Pressure surface Mirror chrome plated
Cooling temperature scope Room temp. ~+5℃
Cooling type Tap water cooling/compressor cooling water(optional)
Oil pressure system The proportion hydraulic pressure current capacity loop circuit control
system, the GPY oil pump driver high performance electroencephalographic
matching high accuracy non resistance piston of oil cylinder carry
out constant speed rate control mode, can p reelection one, two
times pressure and time.
Oil cylinder stroke Max 200mm
Oil cylinder speed 11mm/s
Pressure gauge 0~350kg/sq.cm
power 10.6HP
Dimension W×D×H 1000×500×1500 mm
Power supply 3∮,AC380V,20A
Weight About 658kg

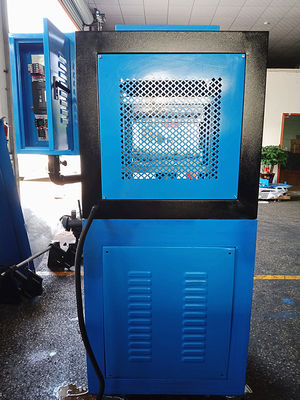

20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling 0



20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling 1



20T Double Layer Vulcanizing Hot Press Hydraulic Machine With Water Cooling 2
