U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )

U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )
U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ) U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ) U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ) U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ) U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )

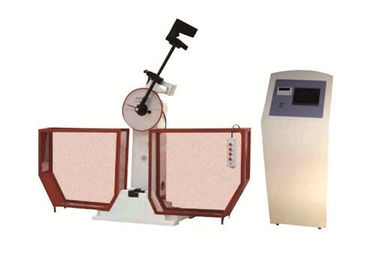

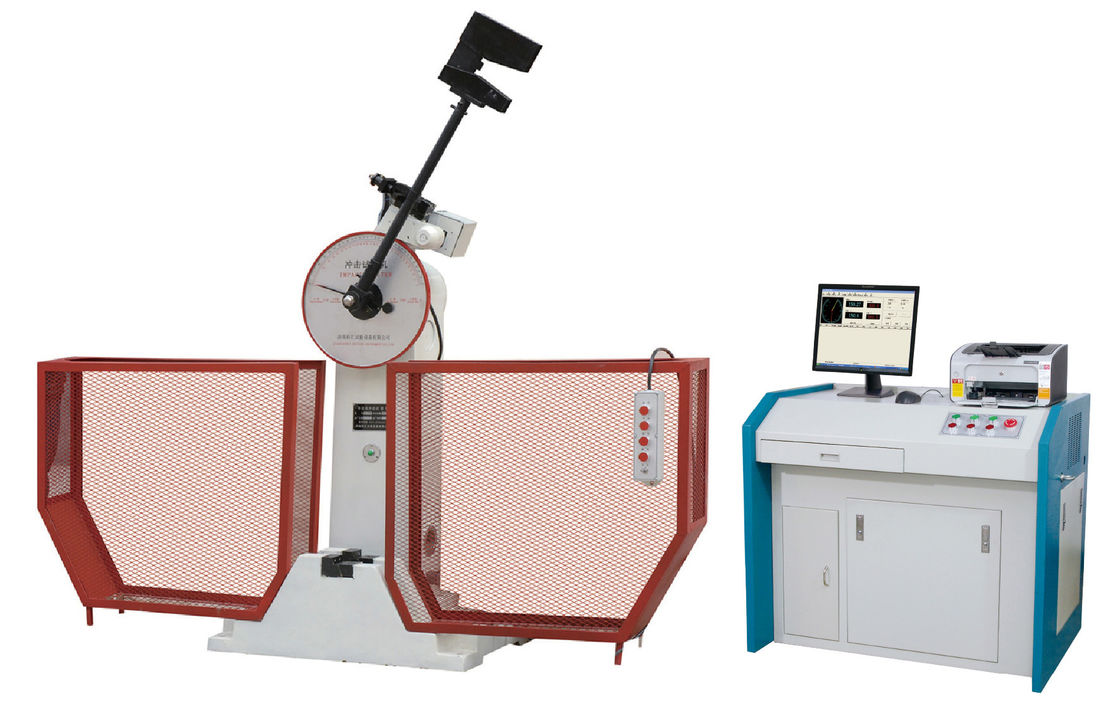

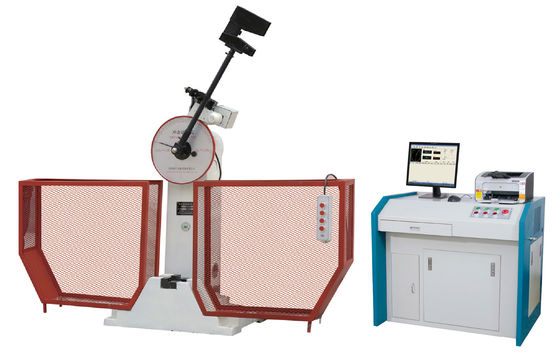

Large Image :  U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3016F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Metal impact testing machine is packaged within wooden case.
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 sets / month
Detailed Product Description
Product Name: U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J ) Impact Energy: 300J (large Hammer) 150 (small Hammer)
Impact Speed: 5.2m/s Pendulum Pre-angle: 150 °
Sample Support Span: 40mm Impact Blade Fillet: R2.0~2.5mm R8mm
Angle Accuracy: ± 0.1 ° Key Words: Charpy Metal Impact
High Light:

rubber tensile testing machine

,

rubber testing equipments

U - Shaped Pendulum Digital Charpy Metal Impact Testing Machine ( 150J / 300J )





Performance description:

ZL-3016F Metal impact testing machine(computer typ...

Touch screen control digital display impact testing machine is a new type of impact testing machine launched by our company in the near future. After continuous technical update and improvement in recent years, the product has reached the domestic advanced technology level, JB-S300B The digital pendulum impact tester is designed in strict accordance with the "GB/T3038-2002 pendulum impact tester" and GB/T229-2007 "metal Charpy notched impact test method", according to JJG145-82 "pendulum type The impact test machine is factory-examined, and the American standard impact cutting edge can be converted according to the actual needs of the user.

  • This machine is a digital display semi-automatic impact testing machine, which adopts touch screen operation, PLC control, electric swing, impact, measurement, calculation, digital display and printing, etc., and can automatically use the remaining energy after the sample is broken. The pendulum is ready for the next test, which is easy to operate and has high work efficiency. It is especially suitable for laboratories that continuously perform impact tests and metallurgical and mechanical manufacturing industries that do a lot of impact tests. To meet the requirements of the metal Charpy impact test method, the impact absorption work, impact toughness, pendulum angle and test average of the material can be calculated and displayed.
  • The pendulum is designed as a U-shaped pendulum, which ensures the accuracy of the strike center and the pendulum torque is accurate;
    3. The impact knife is fixed by screws, which is easy and convenient to replace;
    4. It is equipped with safety protection pins and equipped with a protective net;
    5. PLC control, according to the instructions to complete the whole process of pendulum, impact, automatic swing, and multiple impact tests.
    6. The test machine is equipped with an angle sensor with high-speed sampling, storage and calculation functions;

Main Specifications:



Impact energy 300J (large hammer) 150 (small hammer)
Impact speed 5.2m/s
Pendulum pre-angle 150 °
Sample support span 40mm
Support jaws rounded R1.0~1.5mm
Impact blade fillet R2.0~2.5mm R8mm
Distance from pendulum center to impact point 750mm
Standard sample size 10 (7.5, 5) × 10 × 55mm
Power and power three-phase four-wire 50Hz 380V
Angle accuracy ± 0.1 °
Host size 2000 × 650 × 1960mm
Digital display cabinet size 360 × 400 × 1200mm
Weight about 550Kg
Surrounding environment. There is no corrosive medium, no vibration and no strong electromagnetic field interference in the surrounding environment.



Main equipment configuration:

  • 300 joules host;
  • 150J, 300J pendulum each
  • One motor (mounted on the main unit);
  • A set of pendulum transmission devices (mounted on the mainframe);
  • One set of automatic hanging device (installed on the host);
  • A set of insurance institutions (installed on the host);
  • A set of safety protection devices;
  • One supporter; (installed on the main unit)
  • One sample centering device;
  • One of the proximity switches (mounted on the main unit);
  • The touch screen displays a set (mounted on the digital display cabinet);
  • One micro printer; (installed on the digital display cabinet)
  • A pendulum remover;

    Introduction to touch screen operation:



1. Bilingual interface:

Supports both Chinese and English operating languages, which can be switched between Chinese and English before entering the test interface;

2. Semi-automatic:

Manually take the pendulum during the test. After the completion, the material is manually discharged, and then the unloading and impact are completed, and the device automatically takes the pendulum. The impact area and impact toughness will be displayed in the system display area after each experiment. The three tests are a group, and the system automatically calculates the average value of the three impact energies after the completion of one set.

3. Storage function:

It can store 100 sets of experimental data, including test name, test original value, average value, test time and other information.

Print function: (optional) Print the current test data through a micro printer.

4. Multi-level energy: The device supports multiple impact pendulums of different energy levels.



Picture introduction:

The local screen has a total of the boot language selection interface, the main operation interface, the memory recall interface, the password input interface, the system settings and the print screen, and each of the six in English and Chinese.

Test boot interface

1),  Select Chinese and English system before entering the test , Chinese and English test interface



2),The main working interface of the device, implementing various actions of the device in this interface



3), Sample information input interface

This interface is the interface for inputting the basic information of the sample, preparing for calculating the impact toughness.





4), Test result print interface



After the test, press the print button in the sample information interface to display the preview of the printed report, and then press the print button in the print preview to print the test result. (The external micro-printer must be connected before printing. The printer should be configured by itself. The user must specify when purchasing is it a needle or a thermal printer?
