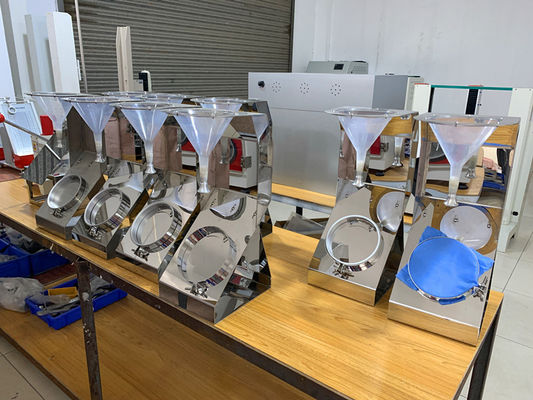

Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free

Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free
Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free

Large Image :  Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-5019
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free is packaged within wooden case.
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets / month
Detailed Product Description
Product Name: Fabric Water - Stain Tester With Stainless Steel Spray Nozzle For Rust Free Size Of Test Specimen: 180 X 180 Mm Square
Spray Nozzle: Converse Face With 19 Holes Rate Of Water Spray: 250 Ml In 25 To 30 Seconds
Position Of Test Specimen: Mounted On A Ring And Placed At An Angle Of 45° Holder Dia: 150 Mm (±5 Mm)
High Light:

abrasion resistance testing machine

,

yarn twist tester

Fabric Water-stain Tester With Stainless Steel Spray Nozzle For Rust Free





INTRODUCTION



Water repellency is an important property of textile fabrics to measure the efficiency of water resistant/repellant finishing applied on textiles. YG813 Spray Rating Tester is the appropriate equipment to test the property spraying a specified volume of distilled water is sprayed on a Test specimen, which has been mounted on a ring and placed at an angle of 45°, so that the center of the specimen is 150mm below the spray nozzle. The Spray rating is determined by comparing the appearance of the specimen with AATCC Spray Test Rating Chart.



USAGE



To determine the water repellency or surface wetting resistance of fabrics. Appearance of the specimen is compared against photographic chart.



TESTING STANDARDS



ISO 4920-Determination of resistance to surface wetting (spray test)

AATCC 22-Water repellency:spray test

BS 3702-Determination of Resistance of Textile Fabrics to Surface Wetting (Spray Test)

IS 390-Determination the water repellency of fabrics by water spray test

NEXT 23,WSP 080.1.R4 (12),BS EN 24920,M&S P23



SALIENT FEATURES



1.Spatially designed equipment to measure the resistance of fabrics to wetting by water.

2.Latest economic design with modern esthetics.

3.With Stainless steel spray nozzle for rust free, long life & durability.

4.Complete with all accessories including 500ml beaker, template for cutting specimen.

5.Specimen holder is fixed at 45°to the specification of American standard.

6.Supplied with calibration & inspection certificates.



TECHNICAL DETAILS



Size of test specimen 180 x 180 mm square.
Spray nozzle Converse face with 19 holes.(Center-1, First circle-6, Second circle-12)
Rate of water spray 250 ml in 25 to 30 seconds.
Position of test specimen Mounted on a ring and placed at an angle of 45°.
Distance between center of spray 150 mm (±2 mm) nozzle and center of the specimen
Holder Dia. 150 mm (±5 mm)
Plastic funnel dia. 150 mm (±5 mm)
Height of the funnel with nozzle 200 mm (±10 mm)
Dimensions 200 x 250 x 480 mm
Weight 5 Kg



ACCESSORIES SUPPLIED WITH THE INSTRUMENT



1.Main Unit:01 No.

2.Calibrated Beaker (500 ml.) (Plastic):01 No.

3.Specimen Template:01 No.

4.This User’s Manual:01 No.

5.Inspection & Conformance Certificate:01 No.
