| Power: | AC220V 50Hz | Test Items: | Rubber,plastics, Ceramics, |
|---|---|---|---|
| Measuring Accuracy: | 0.1g (0.1J) | Sample Clamping: | Pneumatic |
| Sample Size: | >150mm*150mm | Net Weight: | 70kg |
| High Light: | rubber tensile testing machine,rubber testing equipments |
||

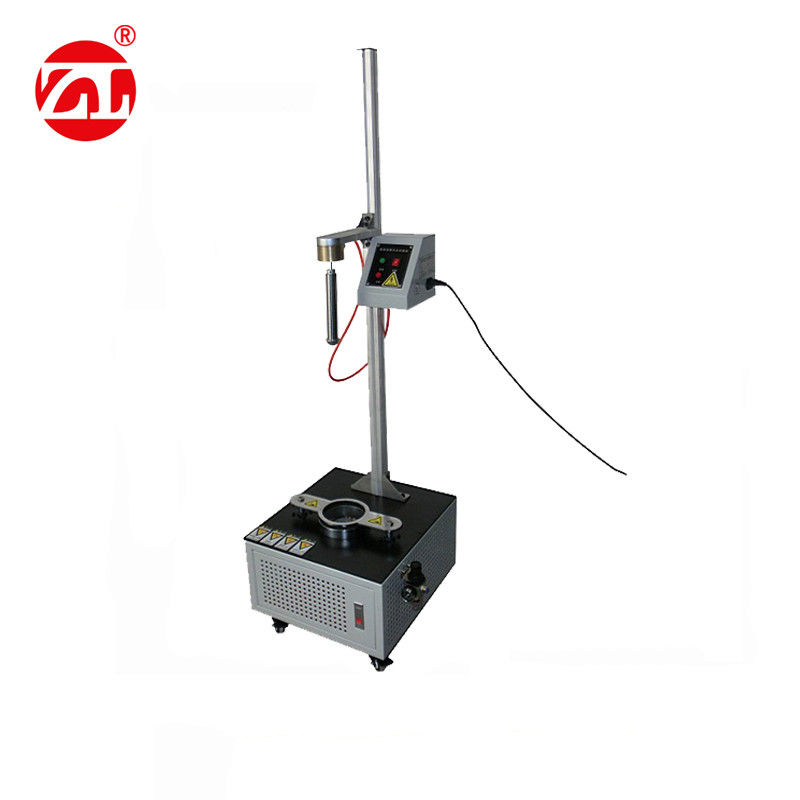

Falling Weight Impact Test Machine , Fall Dart Impact Tester for Plastic Rubber
Product Summary:
Plastic Film Drop Dart Impact Strength Test Equipment apply to plastic film or chip which thickness less than
1mm impact by fall darts in a given great freedom to fall, test the impact quality and energy were when 50%
plastic film or chip was damaged.
Working Principle:
When trial is beginning,firstly choice test methods, estimates that an initial quality and Δ m value, and
than testing, if the first sample damaged, with Jordan farmar Δ m reduce falling body quality; If the first
don't break, should be in Jordan farmar Δ m increase fall body quality, based on to test. In a word, use
farmar to reduce or increase the quality of fall, depends on the a sample for damage or breakage.
After test 20 samples, to calculate the damage total N, if N = 10, the experiment is complete; If N<10,
supplement the sample, continue to test until N=10; If N>10, supplement the sample, continue to test
until no damage is equal to the total number is 10, finally automatic calculation the shock results by the
system.
Meet Standard:
GB 9639,ASTM D1709,JIS K7124
Basic Operation Steps:
System power→Choose experimental method→Estimates that initial impulse and Δm→System automatically
calculation progress→Automatic judgment whether meet the end conditions→Test results show→Print test
report→Off-test
Product Feature:
♣ National standards and international standards are compatible
♣ Mechanical modelling novel, operation design thoughtful
♣ Test method A and B, dual mode design
♣ Unique lighting observation lamp,testing convenient and quick
♣ The test data micro process
♣ The test process intelligent, improve working efficiency
♣ Sample pneumatic clamping, release, reduce the test error and test time
♣ The test process without the artificial drawing mark, data parameter system liquid crystal display
♣ The test data automatic identification system, calculation, without human intervention
♣ Test to be automatic end, the results showed many units, the play output by computer.
Technical Parameters:
| Measuring range | A:50~2000g B:300~2000g |
| Measuring accuracy | 0.1g (0.1J) |
| Test condition | 23°C,50%RH (standard) |
| Sample clamping | pneumatic |
| Sample size | >150mm*150mm |
| Power | AC220V 50Hz |
| Net weight | 70kg |
| Contour dimension | A method:500(L)mm×450(B)mm×1320(H)mm |
| Standard configulation | B method: 500(L)mm×450(B)mm×2160(H)mm |
| A method configuration | |
| Option | B method configuration |
| (Note: air users should bring by users) |
