Product Details:
Payment & Shipping Terms:
|
| Usage:: | Textile Testing Instrument | Power:: | Electronic |
|---|---|---|---|
| Accuracy Of Measuring Strength:: | Formaldehyde Content <= 2% F.S | Light Sources:: | Imports Of Long-life Tungsten Halogen |
| Wavelength Range:: | 325-1000nm | Sperctral Bamdwidh:: | 5nm |
| High Light: | textile testing equipment,yarn twist tester |
||

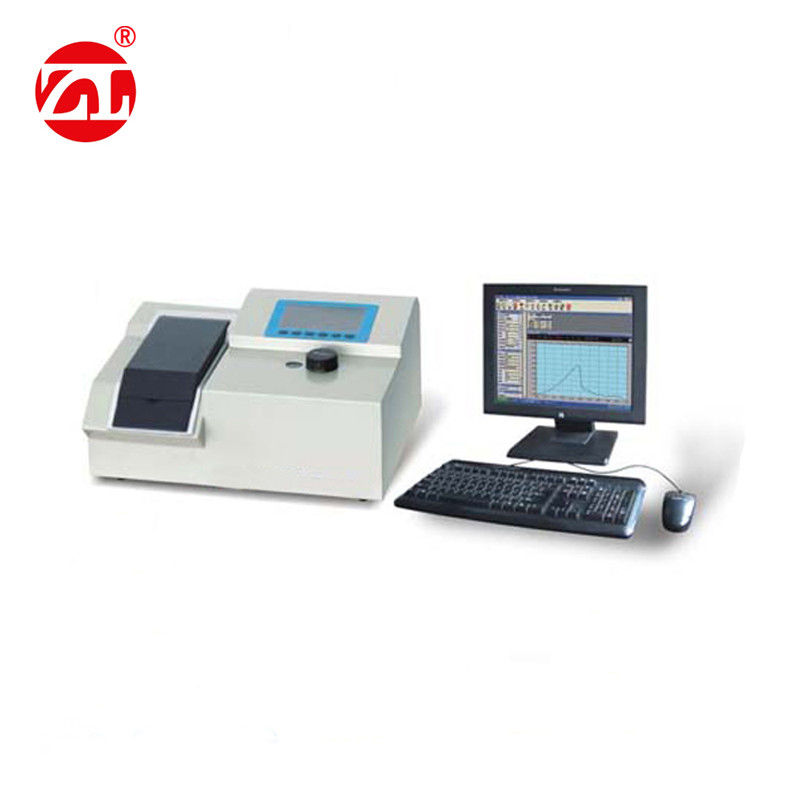

Lab Textile Formaldehyde Content Analyzer Textile Testing Machine
1. Applicable Range:
Used for rapid testing formaldehyde contents in all kinds of textiles.
2. Relevant Standards:
GB/T2912.1 GB/T 2912.2 GB18401 SN/T2195 etc.
3. Instrument characteristics:
1.In accordance with national standard method, determination and absorbance values of formaldehyde can be detected by using extraction;
2.Host (own LCD display) and two-way computer controlled, automated spectral dataprocessing,report printing.
3.With functions of absorption curve, selected wavelength, absorbance, transmittance, etc
4.Spectrophotometer structure, four-station automatic testing, an automatic test three samples
5.Automatic calibration 100% T and 0% T.
4. Technical parameters:
| Working pattern |
computer control, the Chinese liquid crystal display, report printing,graphic computer software can be connected to the test. |
| Range and accuracy | transmittance0% -100%; absorbance 0-2 .0; formaldehyde content5.00-500.00mg/kg (sample dilution of up to 5000mg/kg) |
| Accuracy of measuring strength | formaldehyde content ≤ 2% F.S |
| Light sources | Imports of long-life tungsten halogen |
| Optical system |
self-aligned-type optical design, 1200 / mm diffraction grating monochromator |
| Wavelength range | 325-1000nm |
| Spectral Bandwidth | 5nm |
| Wavelength accuracy | ± 2nm |
| Wavelength Repeatability | 1nm |
| Power source | AC220V±10% 50Hz 50W |
| External dimensions | 400×300×200mm |
| Weight |
10kg |
