Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Capacity: | 20KN , 15±0.1KN |
|---|---|---|---|
| Load Resolution: | 1/20000 | Accuracy: | Within 1% |
| Press Plate Hardness: | 60HRC | Test Speed: | 5-500 Mm/min |
| Stroke Display: | 0.01mm | Warranty: | 12 Month |
| High Light: | helmet testing equipment,temperature test machine |
||
Introduce:

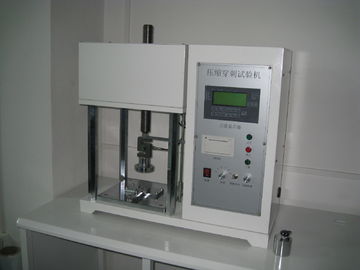

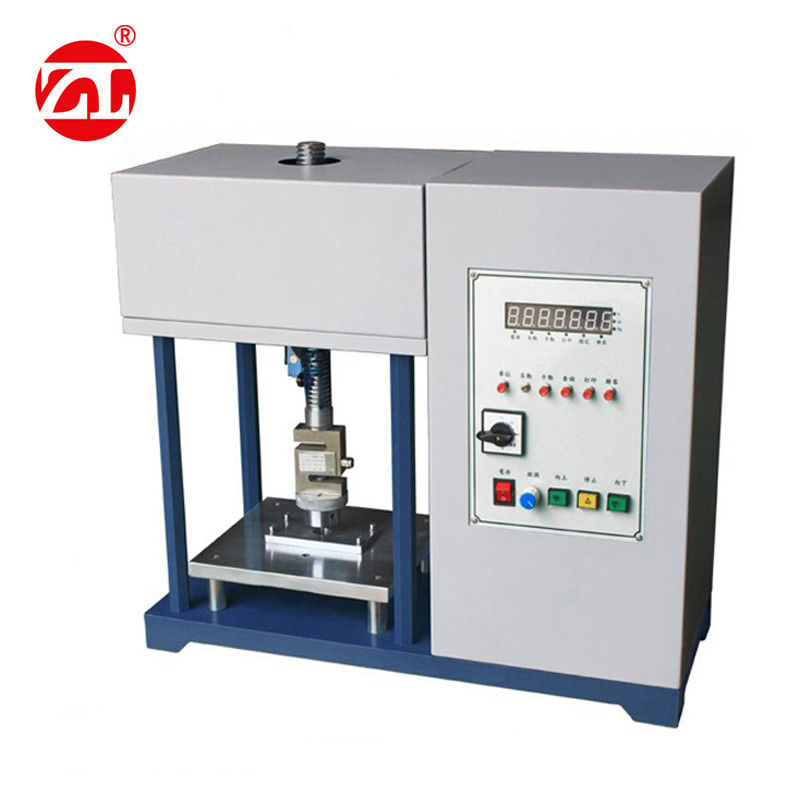

Safety Gloves Puncture Testing Machine is used to measures the compression strength for safety gloves,
safety shoes steel head and puncture-resistant performance for steel plate.It Suitable for all types of
steel head compression for safety shoes and puncture-resistant test for steel plate, and to prevent the
injury of accident to operators in the workplace by wearing owing to the security of shoes.
ZL-2202 Safety shoes puncture resistance tester.wp...
Standard:
Safety Gloves Puncture Testing Machine meet GB21146-2007; GB21147-2007; GB21148-2007; GB21149-2007;
Specification:
| Model | ZL-2202 Safety Gloves Puncture Testing Machine |
| sensor capacity | 20KN , 15±0.1KN |
| load resolution | 1/20000 |
| Accuracy | within 1% |
| Press plate hardness | 60HRC |
| Puncture steel nail | Diameter:(4.5±0.05)mm, hardness:60HRC |
| display system | English controller |
| Test speed |
5-500 mm/min, the speed can be adjustable Compression speed:(5±2)mm/min Puncture speed:(10±3)mm/min |
| Stroke display | 0.01mm |
| Unit | Kg, N. LB can be changed each other |
| Motor | AC motor+ reducer |
| Measuring fixture | compression/puncture fixture |
| dimension | 82*58*71cm |
| weight | 148kg |
| Power | AC220V 50HZ 0.4KW |
