| Product Name: | Automatic Plastic / Metal Parts Video Measuring Machine For Two Coordinates | Power: | 220v 50hz |
|---|---|---|---|
| The Camera: | Color 1/3 CCD Camera | Zoom Optical Lens Range: | 0.7-4.5x |
| Motion Stroke: | 300*200mm | Working Distance: | 108mm |
| Warranty: | 12 Month | Key Words: | Video Measuring Automatic |
| High Light: | image measuring machine,image measurement system,Video Measuring Machine For Two Coordinates |
||

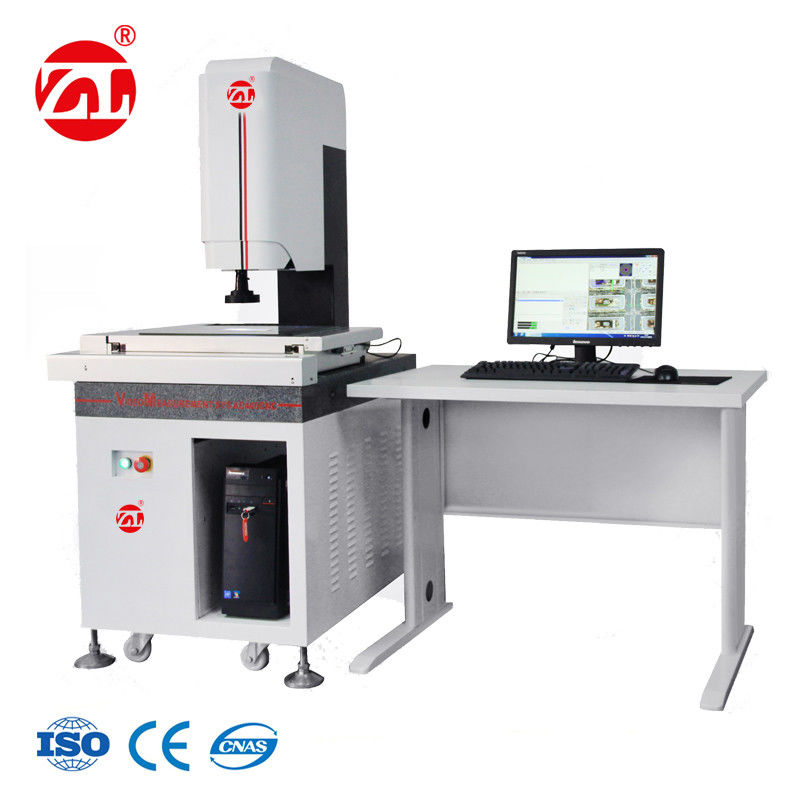

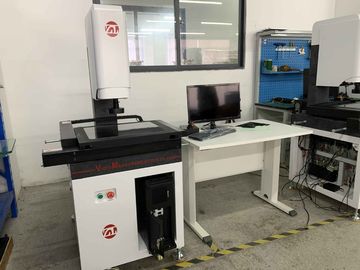

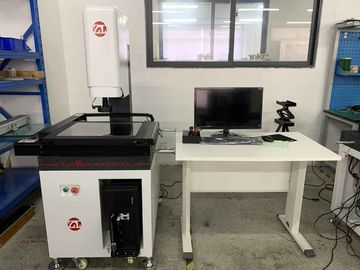

Automatic Plastic / Metal Parts Video Measuring Machine For Two Coordinates
Download Brief:
ZL-1502 Video Measurement Machine (Automatic type)...
Equipment Summary:
Video Measuring System Measuring Machine is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.
Main Features:
1. Instrument equipped with RS - 232 interface, after connect with computer, using special measuring software M2D of surveying and mapping graphics processing and output;
2. Instrument by color CCD camera, zoom objective and ShiZiXian generator as measuring aiming system;
3. Grating feet and DC - 3000 electricity box composition digital measurement and data processing system;
4. The instrument has a variety of data processing, display, input and output functions, especially the workpiece adjust function very practical, Users can according to their respective needs optional printer and different measuring aiming system.
Technical Parameters:
| Instrument Model | Video Measuring System Measuring Machine | ||
| Workbench | Metal sets foot inch | 510 *290mm | |
| Glass set foot inch | 360*160mm | ||
| Motion stroke | 300*200mm | ||
| Instrument weight | 200kg | ||
| Measurement and aiming system | The camera | Color 1/3 CCD camera | |
| Zoom optical lens range | 0.7-4.5x | ||
| Video always magnificaiton | 30-230* | ||
| Thing fang view | 0.7~1.1mm | ||
| Working distance | 108mm | ||
| Z axis lifting | 150mm | ||
| Display esolutino | 1µm | X.Y Coordinate measuring the over-error of indication error ≤ (3+L/200)µm | |
| Lighting | light and transmitted light sources are surface with adjustable brightness | ||
| power | 220V(AC) 50HZ 30W | ||
| Measuring software | standard for automatic measurement software, it can automatic edge finder, deburring, can point, line, circle, circle from, Angle, and adjust etc | ||
