Electric IZOD Impact Specimen Notch Rubber / Plastic Samples-making Machine

Large Image : Electric IZOD Impact Specimen Notch Rubber / Plastic Samples-making Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3040

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Electric IZOD Impact Specimen Notch Sample-making Machine is packaged within safety wooden case （fumigation free）
Delivery Time:	5- 7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Material:	Sheet Metal + Plating
Color:	White Or Customize	Blade Feeding Speed:	30mm/min
Table Stroke:	>160MM	Warranty:	12 Month
High Light:	rubber tensile testing machine , rubber testing equipments

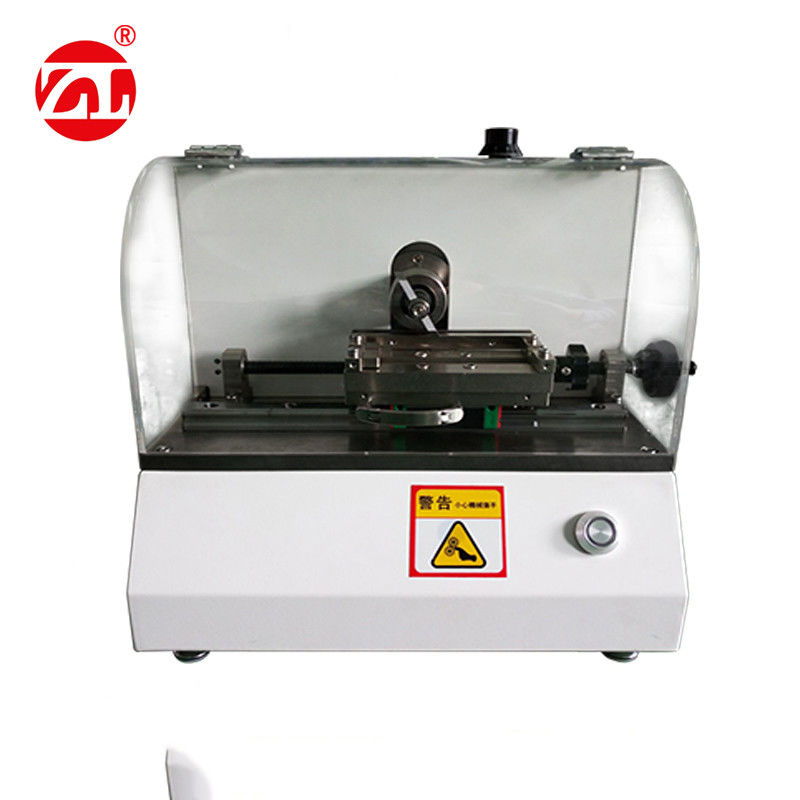

Electric Izod Impact Specimen Notch Sample-making Test Machine

Product introduction:

Electric Izod Impact Specimen Notch Sample-making Machine is the sampling machine producing notch sample used by charpy and izod impact tester to do the test of impact toughness of non- metallic materials. It can clamp 20 samples per time; make more than 60 notches per 10 minutes.

The size of Electric Izod Impact Specimen Notch Sample-making Machine is accurate, and has much effective, greatly reduced the difficulties of operation.

Main technical parameters:

Table stroke	>160MM
Blade feeding speed	30mm/min
Sample type	I type
Notch type	according to the specifications of the blade
Feeding amount	according to the standard
External dimension	600mm×270mm×300mm
Supply voltage	220V, single-phase three wire system

Electric IZOD Impact Specimen Notch Rubber / Plastic Samples-making Machine 0

Electric IZOD Impact Specimen Notch Rubber / Plastic Samples-making Machine 1

Electric IZOD Impact Specimen Notch Rubber / Plastic Samples-making Machine 2
